Control up to 4 high resolution multimedia computers from a single console

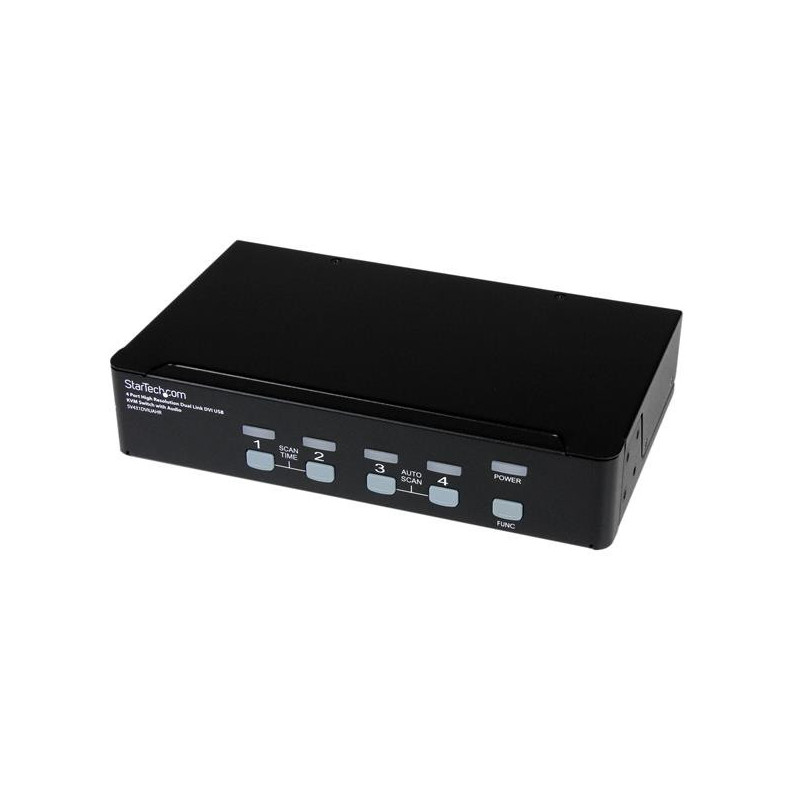

The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.

Audio switching capability and support for high resolution dual link DVI applications up to 2560x1600 @ 60Hz (up to 3840x2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.

The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Dual Link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor’s workspace
- Integrated USB 2.0 hub allows the user to have full multimedia control and share USB peripherals eliminating the expense of duplicate devices
- Supports even higher resolutions (exceeding 2560x1600) by using a lower refresh rate. Example 3840x2400 @30Hz

StarTech.com SV431DVIUAHR. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 3840 x 2400 pixels, Maximum digital resolution: 2560 x 1600 pixels, Number of users: 1 user(s). Product color: Black, Mean time between failures (MTBF): 64000 h, Certification: CE, FCC. Input voltage: 110-240 V, Input current: 0.4 A, Output voltage: 5 V. Compliance certificates: RoHS

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
DVI-I ports quantity	5
USB 2.0 ports quantity	4
Audio connections	Yes
DC-in jack	Yes
Maximum resolution	3840 x 2400 pixels
Maximum digital resolution	2560 x 1600 pixels
HDCP	Yes
Daisy chain	No
Number of users	1 user(s)
Product color	Black
Mean time between failures (MTBF)	64000 h
Certification	CE, FCC
Built-in display	No
Input voltage	110-240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
Power plug type	Type M
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	8.66" (220 mm)
Depth	5.12" (130 mm)
Height	1.73" (44 mm)
Weight	3.86 lbs (1.75 kg)
Package width	3.74" (95 mm)
Package depth	16.2" (411 mm)
Package height	8.43" (214 mm)
Package weight	2.73 lbs (1.24 kg)
Manual	Yes
AC adapter included	Yes
Rubber feet	Yes
Harmonized System (HS) code	85176200
Audio support	Yes
IP control	No
