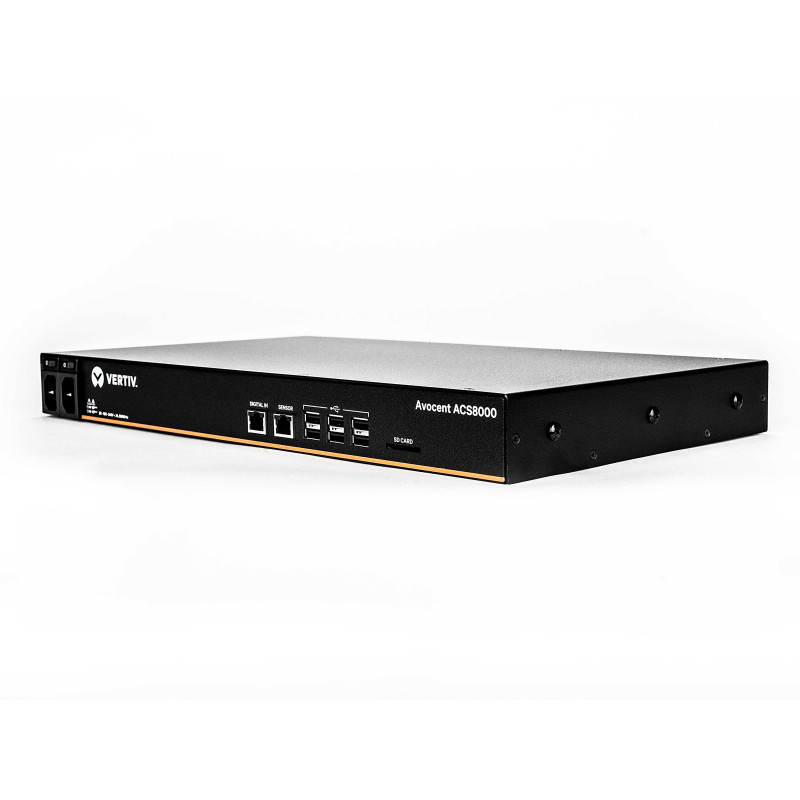

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).

Vertiv Avocent ACS8048DAC-404. Management protocols: CLI, HTTP/ HTTPS, SNMP. Authentication method: LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP), Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3,.... Console port: RJ-45, AC outlet types: C13 coupler. Operating system installed: Embedded LINUX. Dimensions (WxDxH): 17.3 x 9.5 x 1.75" (438.2 x 241.3 x 44.5 mm), Weight: 7.5 lbs (3.4 kg)

Rack mounting	Yes
Internal modem	No
Zero Touch Provisioning (ZTP)	Yes
Web-based management	Yes
Temperature sensor	Yes
Product color	Black
Management protocols	CLI, HTTP/ HTTPS, SNMP
Authentication method	LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
IP address filtering	Yes
One-time password (OTP)	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	2
SFP module slots quantity	2
AC outlet types	C13 coupler
Operating system installed	Embedded LINUX
Dimensions (WxDxH)	17.3 x 9.5 x 1.75" (438.2 x 241.3 x 44.5 mm)
Weight	7.5 lbs (3.4 kg)
Power source type	AC
AC input voltage	108 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Power consumption (max)	35 W
Input current	0.1 A
Number of power supply units	2
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Certification	FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Flash memory	16000 MB
RAM capacity	1024 MB
RAM type	DDR3L
eMMC capacity	16 GB
Processor family	ARM Cortex-A9
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	667 MHz
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
Safety	UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
