KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

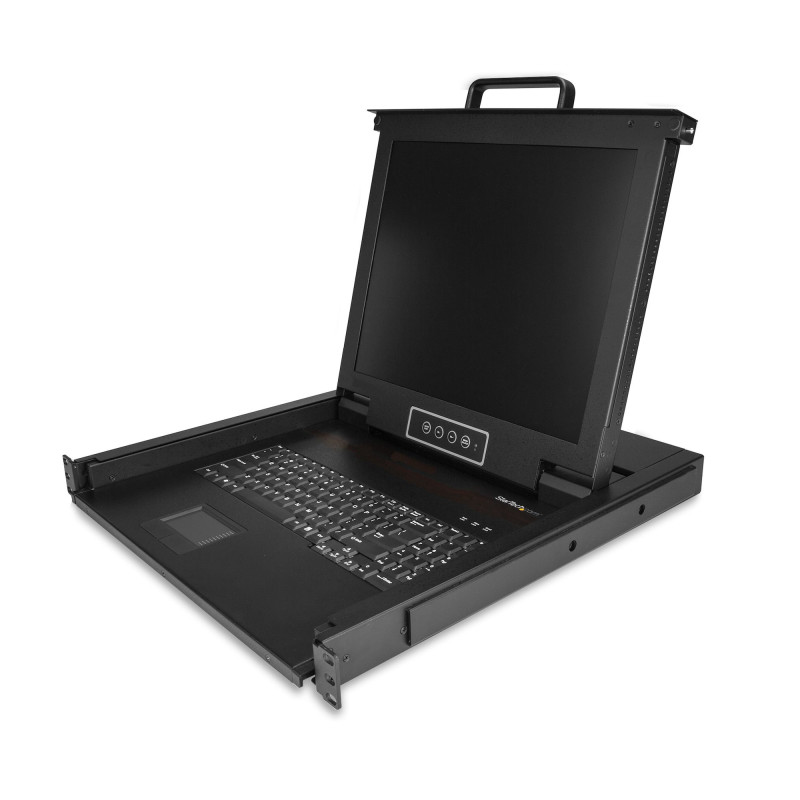

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com RKCONS1701. Display diagonal: 17", Display resolution: 1280 x 1024 pixels, Display brightness: 250 cd/m². Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Certification: CE, FCC, PSE, UL. Power consumption (typical): 13 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 17.6" (448 mm), Height: 18.5" (471 mm), Depth: 1.67" (42.5 mm)

Display diagonal	17"
Display resolution	1280 x 1024 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.0104 x 0.0104" (0.264 x 0.264 mm)
Aspect ratio	5:4
Display type	LCD
Response time	5 ms
Display number of colors	16.78 million colors
Color depth	8 bit
Material	Steel
Mean time between failures (MTBF)	50000 h
Operating relative humidity (H-H)	10 - 80%
Rack mounting	Yes
Daisy chain	No
Key lock	No
LED indicators	Power, Status
Cable length	71.7" (1.82 m)
Compliance certificates	RoHS
Rack capacity	1U
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Certification	CE, FCC, PSE, UL
Power consumption (typical)	13 W
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Width	17.6" (448 mm)
Height	18.5" (471 mm)
Depth	1.67" (42.5 mm)
Weight	25.6 lbs (11.6 kg)
Mounting depth (min)	17.7" (45 cm)
Mounting depth (max)	31.1" (79 cm)
Package weight	37.7 lbs (17.1 kg)
Package width	24.2" (615 mm)
Package depth	30.1" (765 mm)
Package height	7.28" (185 mm)
Cables included	KVM
Screws included	Yes
Number of screws	8
Mounting brackets included	Yes
Cage nuts included	Yes
Number of cage nuts	8
Included power plug types	ANZ, EU, JP, NA, UK
Quick installation guide	Yes
Rack mount kit	Yes
Master (outer) case width	24.2" (615 mm)
Master (outer) case length	30.1" (765 mm)
Master (outer) case height	7.28" (185 mm)
Quantity per master (outer) case	1 pc(s)
IP control	No
