KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

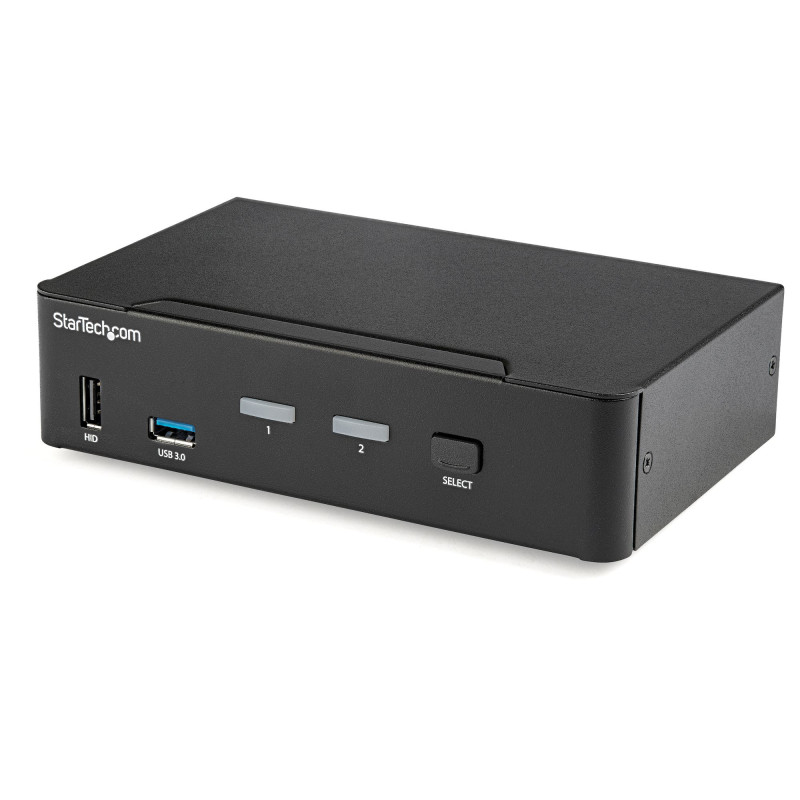

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com SV231DPU34K. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Number of users: 1 user(s). Product color: Black, Housing material: Steel, Mean time between failures (MTBF): 60000 h. Input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 12 V. Compliance certificates: RoHS

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity	3
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console USB ports quantity	6
USB connector type	USB Type-A, USB Type-B
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Daisy chain	No
Number of users	1 user(s)
Audio channels	2.0
Product color	Black
Housing material	Steel
LED indicators	Yes
Hot keys	Yes
Mean time between failures (MTBF)	60000 h
Certification	CE, FCC, TAA, REACH
Built-in display	No
On Screen Display (OSD)	No
Input voltage	100 - 240 V
Input current	0.6 A
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	18 W
External power adapter	Yes
Power plug type	Type M
Compatible power plug types	AU, EU, JP, UK, US
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	6.3" (160 mm)
Depth	3.94" (100 mm)
Height	1.57" (40 mm)
Weight	2.43 lbs (1.1 kg)
Package width	7.44" (189 mm)
Package depth	9.37" (238 mm)
Package height	3.58" (91 mm)
Quick installation guide	Yes
AC adapter included	Yes
Rubber feet	Yes
Harmonized System (HS) code	85176200
Master (outer) case width	12.5" (318 mm)
Master (outer) case length	15.3" (389 mm)
Master (outer) case height	11.2" (285 mm)
Quantity per master (outer) case	6 pc(s)
IP control	No
