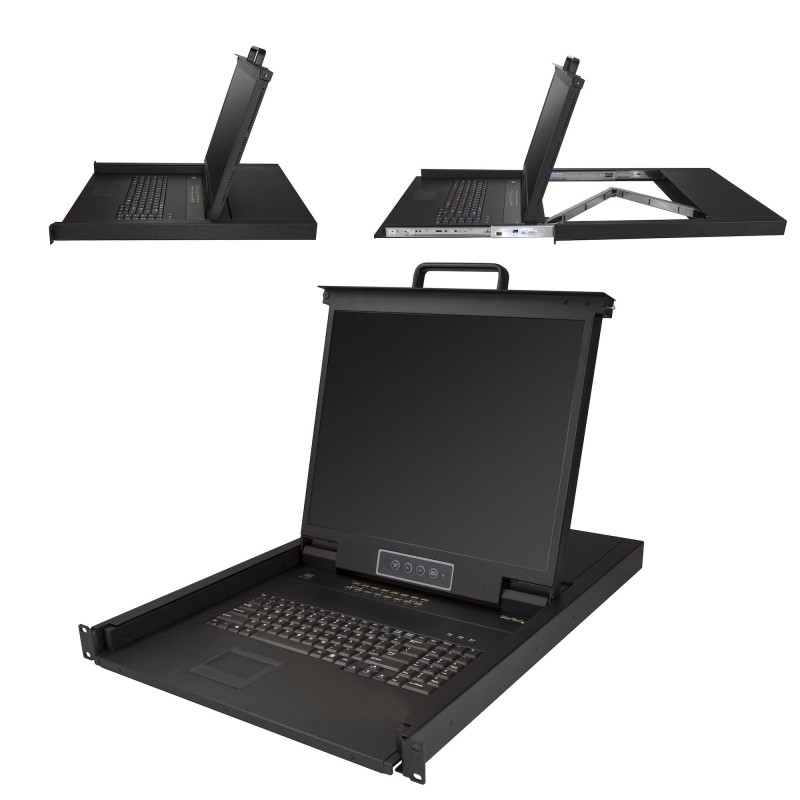

Control your server or KVM switch from a centralized rack-mount KVM console

This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.

Clutter-free monitoring

The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.

The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com RKCONS1916K. Display diagonal: 19", Display resolution: 1280 x 1024 pixels, Display: TFT LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Certification: PSE, FCC, UL, CE, REACH. Power consumption (typical): 23 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 19" (483 mm), Height: 1.69" (43 mm), Depth: 25.3" (643 mm)

Display diagonal	19"
Display resolution	1280 x 1024 pixels
Display	TFT LCD
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Pixel pitch	0.0104 x 0.0104" (0.264 x 0.264 mm)
Display type	LCD
Display number of colors	16.78 million colors
Color depth	8 bit
Mean time between failures (MTBF)	50000 h
Product color	Black
Operating relative humidity (H-H)	10 - 80%
Daisy chain	No
Key lock	No
Number of computers controlled	16
Compliance certificates	RoHS
Rack capacity	1U
VGA (D-Sub) ports quantity	18
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
USB 2.0 Type-A ports quantity	2
Built-in touchpad	Yes
Certification	PSE, FCC, UL, CE, REACH
Power consumption (typical)	23 W
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Width	19" (483 mm)
Height	1.69" (43 mm)
Depth	25.3" (643 mm)
Weight	29.8 lbs (13.5 kg)
Mounting depth (min)	23.8" (60.5 cm)
Mounting depth (max)	35" (89 cm)
Package weight	46.3 lbs (21 kg)
Package width	24.2" (615 mm)
Package depth	30.1" (765 mm)
Package height	7.48" (190 mm)
Cables included	KVM
Screws included	Yes
Number of screws	8
Mounting brackets included	Yes
Cage nuts included	Yes
Number of cage nuts	8
Included power plug types	ANZ, EU, JP, NA, UK
Quick installation guide	Yes
Master (outer) case width	24.2" (615 mm)
Master (outer) case length	30.1" (765 mm)
Master (outer) case height	7.48" (190 mm)
Quantity per master (outer) case	1 pc(s)
Audio support	No
