DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

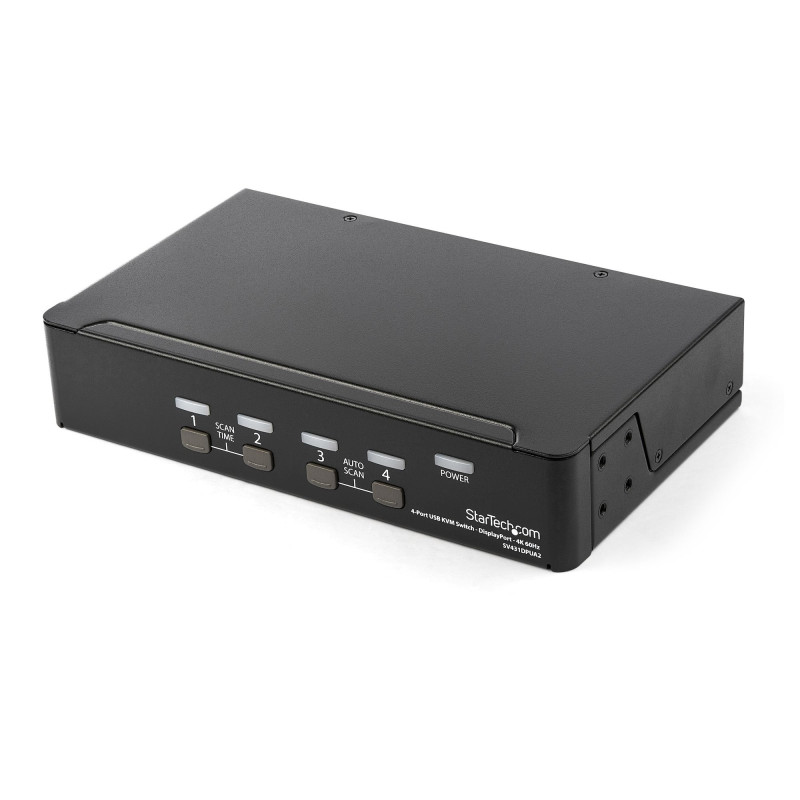

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com SV431DPUA2. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 0.48 Gbit/s. Product color: Black, Rack capacity: 1U, Housing material: Steel. Input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 12 V. Compliance certificates: RoHS

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity	5
USB 2.0 Type-B ports quantity	4
Console USB ports quantity	4
Audio connections	Yes
Headphone outputs	5
Number of microphone inputs	5
DC-in jack	Yes
Ethernet LAN	No
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Data transfer rate (max)	0.48 Gbit/s
Scan interval	3,8,15,30 s
Plug and Play	Yes
Daisy chain	No
Number of users	1 user(s)
Rack mounting	Yes
Product color	Black
Rack capacity	1U
Housing material	Steel
LED indicators	Yes
Hot keys	Yes
Mean time between failures (MTBF)	138327 h
Certification	CE, FCC, TAA, REACH
On Screen Display (OSD)	Yes
Input voltage	100 - 240 V
Input current	0.6 A
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	18 W
External power adapter	Yes
Power plug type	Type M
Compatible power plug types	AU, EU, JP, UK, US
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 40%
Width	5.16" (131 mm)
Depth	8.66" (220 mm)
Height	1.77" (45 mm)
Weight	2.2 lbs (1 kg)
Package width	8.35" (212 mm)
Package depth	16.1" (409 mm)
Package height	3.43" (87 mm)
Package weight	3.53 lbs (1.6 kg)
Quick installation guide	Yes
AC adapter included	Yes
Rubber feet	Yes
Harmonized System (HS) code	85176200
Master (outer) case width	17" (433 mm)
Master (outer) case length	21.5" (545 mm)
Master (outer) case height	10.2" (258 mm)
Quantity per master (outer) case	6 pc(s)
Audio support	Yes
IP control	No
