- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km

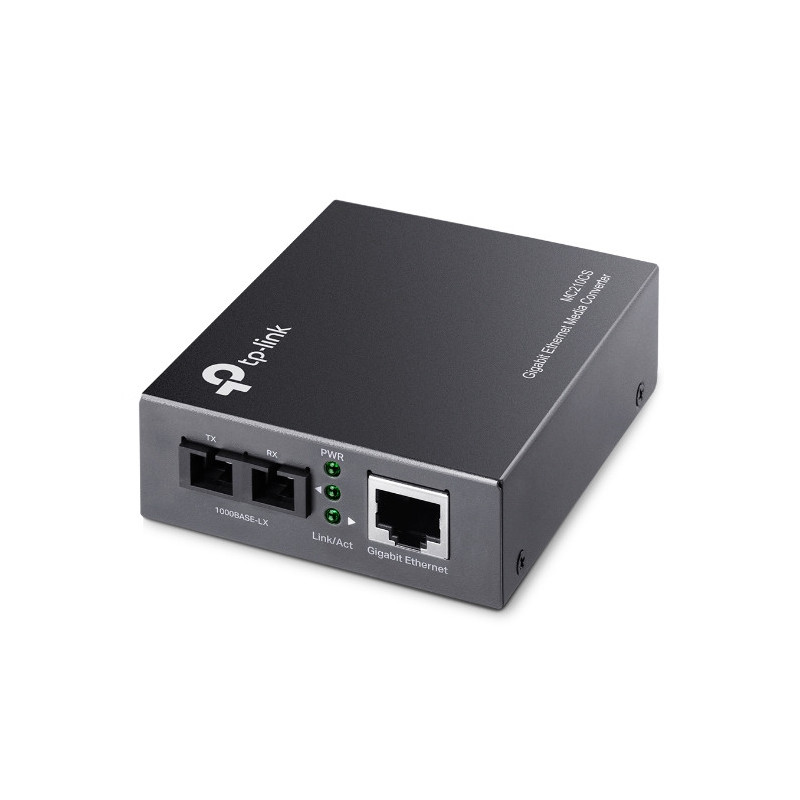

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

TP-Link MC210CS. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 590551.2" (15000 m), Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Power, Product color: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 5.5 W

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Auto MDI/MDI-X	Yes
Duplex system	Full
Cable types supported	Cat6
Maximum transfer distance	590551.2" (15000 m)
Wavelength	1310 nm
Fiber mode structure	Single-mode
Internal	No
LED indicators	Activity, Power
Product color	Black
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power consumption (max)	5.5 W
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Package width	6.5" (165 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	15.2 oz (430 g)
Compliance certificates	RoHS
Certification	FCC, CE
