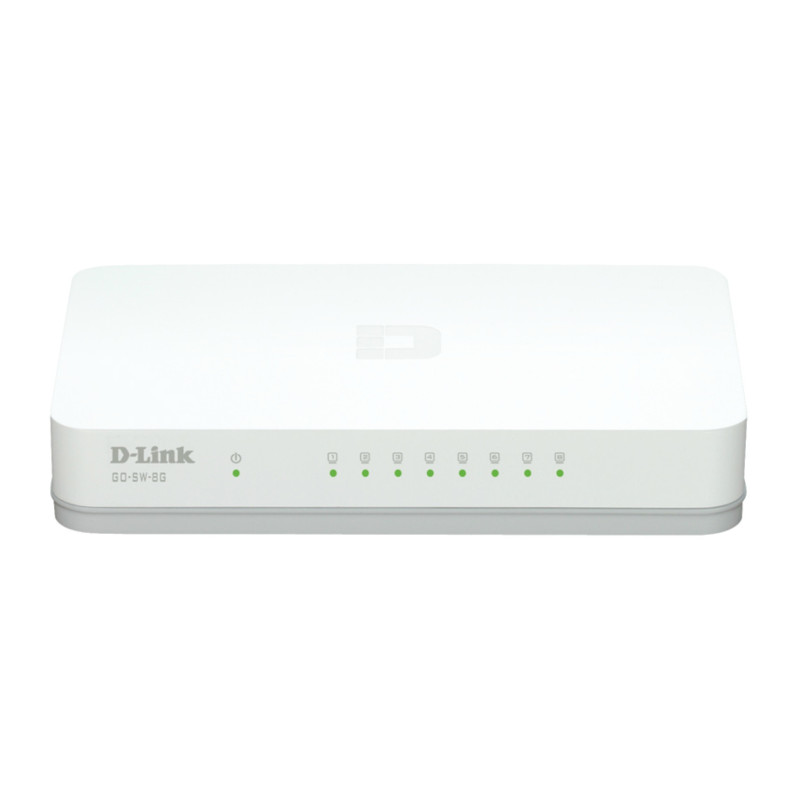

The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Connect All of Your Devices with Gigabit Speed

Expand your wired home network with the D-Link 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.

Compact Design

This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.

Effortless High Speed Networking

Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The GO-SW-8G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.

Plug and Play Installation

TheD-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.

D-Link Green Technology

The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

D-Link GO-SW-8G/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address auto-learning supported	Yes
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Supported network protocols	CSMA/CD
Rack mounting	No
Product color	White
LED indicators	Yes
Buffer size	128 KB
Mean time between failures (MTBF)	412433 h
Output voltage	5 V
Output current	1 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	5.04" (128 mm)
Depth	2.7" (68.5 mm)
Height	1" (25.4 mm)
Weight	6.88 oz (195 g)
User guide	Yes
AC adapter included	Yes
Package width	4.09" (104 mm)
Package depth	6.22" (158 mm)
Package height	3.7" (94 mm)
Package weight	9.91 oz (281 g)
Shipping (inner) case height	7.6" (19.3 cm)
Shipping (inner) case width	9.06" (23 cm)
Shipping (inner) case length	19.6" (49.8 cm)
Shipping (inner) case net weight	4.3 lbs (1.95 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	768.3 lbs (348.5 kg)
Number of cartons per pallet (air)	100 pc(s)
Quantity per pallet (air)	1000 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	81.1" (2.06 m)
Pallet gross weight (sea)	768.3 lbs (348.5 kg)
Number of cartons per pallet (sea)	100 pc(s)
Quantity per pallet (sea)	1000 pc(s)
Pallet height (sea)	81.1" (2.06 m)
Shipping (inner) case weight	7.28 lbs (3.3 kg)
Certification	FCC cUL/UL ICES-003 CCC CE Anatel C-Tick LVD VCCI
Harmonized System (HS) code	85176990
