Extend a Gigabit Network via
Your Existing Electrical Wiring

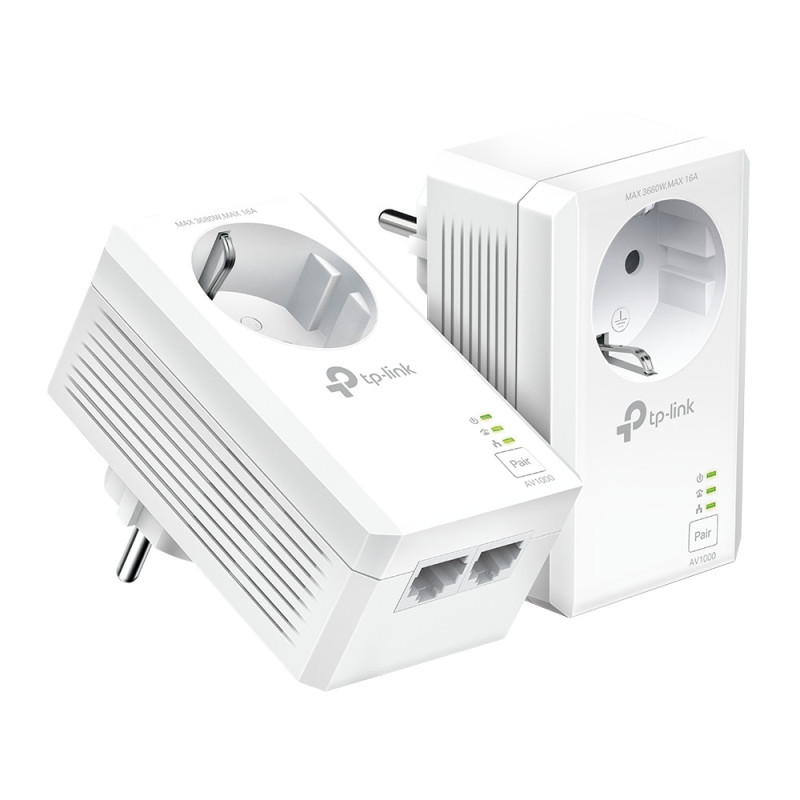

AV1000 2-Port Gigabit Passthrough Powerline Starter Kit

Extend an AV1000
Speed Network to Any Outlet
- No need for new wires or drilling
- Network passes through walls and floors

Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy!

2× Gigabit Ports for High-Speed Connections
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more.

Plug and Play, No Configuration Required


TP-Link TL-PA7027P KIT. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3u, Power plug: Type E / F. Power consumption (typical): 4 W, Power consumption (standby): 0.84 W. Product color: White, Antenna type: Internal, LED indicators: LAN, Power. Windows operating systems supported: Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP. Width: 2.28" (58 mm), Depth: 1.65" (42 mm), Height: 3.74" (95 mm)

Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Wi-Fi	No
Networking standards	IEEE 1901, IEEE 802.3, IEEE 802.3u
Power plug	Type E / F
Built-in power socket	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
PowerLine standard	HomePlug AV2
Modulation	COFDM
Security algorithms	128-bit AES
Maximum operating distance	11811" (300 m)
Encryption button	Yes
Plug and Play	Yes
Power consumption (typical)	4 W
Power consumption (standby)	0.84 W
Product color	White
Antenna type	Internal
LED indicators	LAN, Power
Certification	CE, RoHS
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Width	2.28" (58 mm)
Depth	1.65" (42 mm)
Height	3.74" (95 mm)
Compliance certificates	CE, RoHS
Package width	7.48" (190 mm)
Package depth	5.35" (136 mm)
Package height	3.94" (100 mm)
Package weight	20.5 oz (580 g)
Package type	Box
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Manual	Yes
Cables included	LAN (RJ-45)
