Expand Coverage of the Fastest Next-Gen Wi-Fi

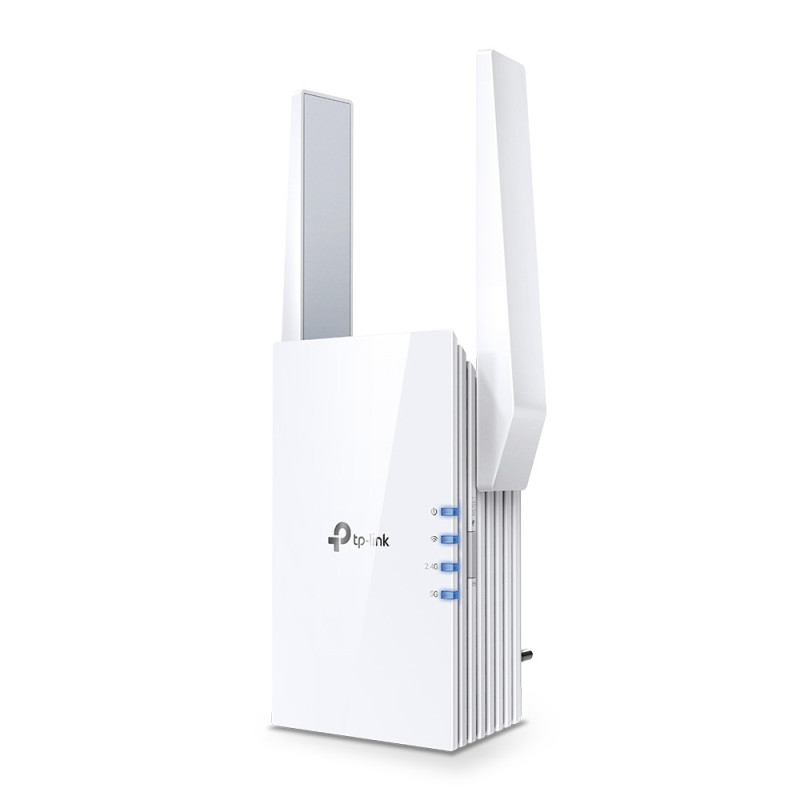

AX1500 Range Extender

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.

Dual Band, More Benefits

Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.


High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.

Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.

Smart Roaming
Uninterrupted streaming when moving around your home

One Wi-Fi Name
No more switching Wi-Fi network names

Easy Creation
OneMesh Router and OneMesh Range Extenders pair instantly

Unified Management
Manage the entire network all from the TP-Link Tether app

Enjoy an AX Mesh Network with Your Existing Router
Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set? Update your existing TP-Link router’s firmware to the OneMeshTM version—no need to replace anything. Connect the RE505X to the router. Enjoy your Mesh network.

Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

TP-Link RE505X. Type: Network transmitter & receiver, Data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Antenna type: External, Transmitting power (CE): 2.4 GHz ≤20dBm, 5 GHz ≤30dBm. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Product color: White, LED indicators: Power, WAN, WLAN, Quantity per pack: 1 pc(s). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 10 W

Type	Network transmitter & receiver
Data transfer rate	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
WPS push button	Yes
Plug and Play	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac compatibility	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Antennas quantity	2
Antenna type	External
Transmitting power (CE)	2.4 GHz ≤20dBm, 5 GHz ≤30dBm
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	1200 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Ethernet LAN (RJ-45) ports	1
Product color	White
LED indicators	Power, WAN, WLAN
Quantity per pack	1 pc(s)
Reset button	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	2.91" (74 mm)
Depth	1.81" (46 mm)
Height	4.91" (124.8 mm)
Quick start guide	Yes
Package type	Box
Package width	7.95" (202 mm)
Package depth	4.92" (125 mm)
Package height	3.82" (97 mm)
Package weight	14.1 oz (400 g)
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
