Dell EMC cooling, power distribution, and cable management products work seamlessly with IT enclosures to provide a complete infrastructure support system. It is compatible with a variety of Dell EMC rack accessory products to provide the ability to create a complete rack system.

NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.

Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.

No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Dell EMC has made it easy by handling the details and providing complete enclosures with single part numbers.

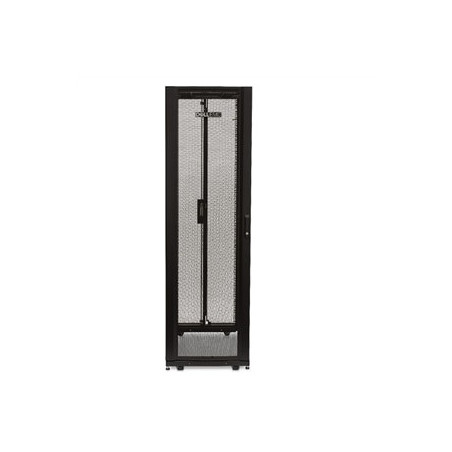

Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.

Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors. Now available are side panel options integrated with pass-through holes and brush strips for routing cabling to adjacent racks in a row while still maintaining proper airfow.

Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.

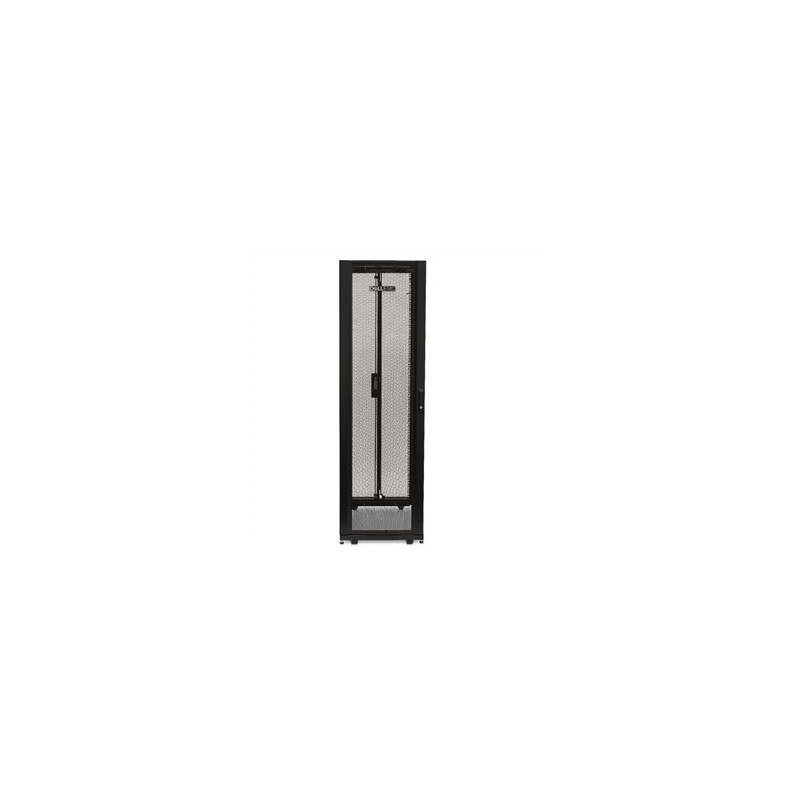

DELL Netshelter SX 42U. Type: Freestanding rack, Rack capacity: 42U, Maximum weight capacity: 3007.1 lbs (1364 kg), Key lock. Weight: 275.6 lbs (125 kg). Product color: Black

Rack capacity	42U
Type	Freestanding rack
Maximum weight capacity	3007.1 lbs (1364 kg)
Product color	Black
Key lock	Yes
Adjustable stand	Yes
Width	23.6" (600 mm)
Depth	42.1" (1070 mm)
Height	78.3" (1990 mm)
Weight	275.6 lbs (125 kg)
Harmonized System (HS) code	85381000
