Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

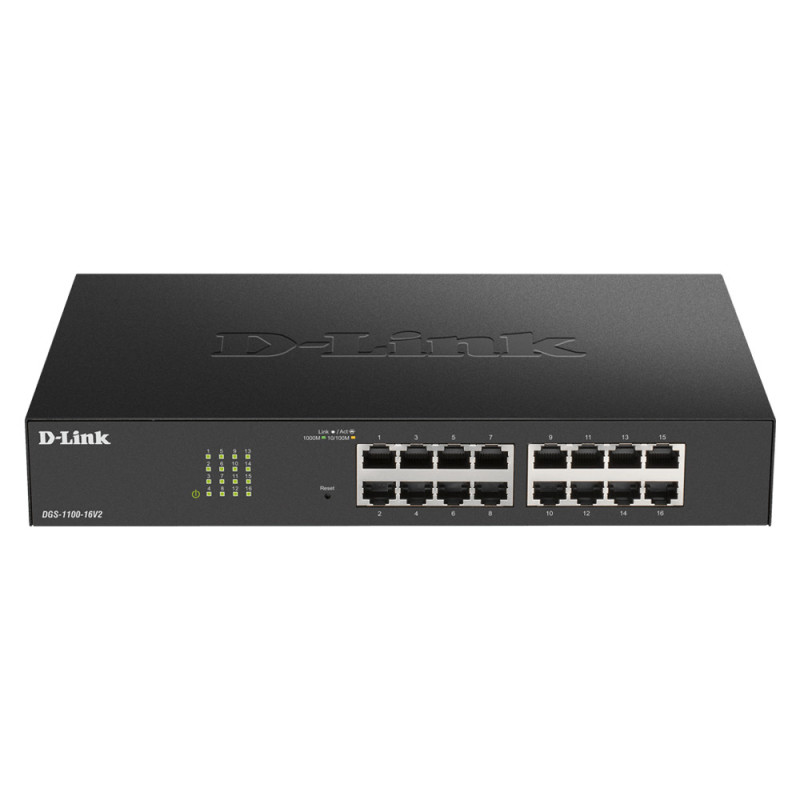

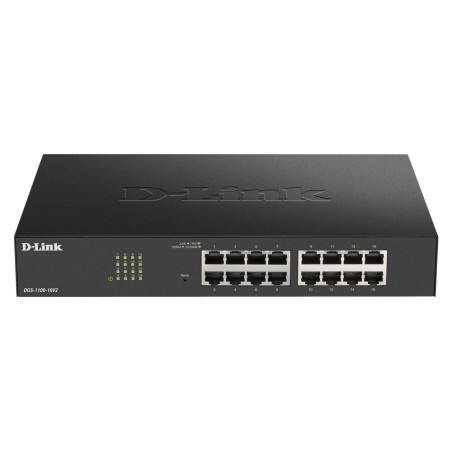

D-Link DGS-1100-16V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN
Number of VLANs	128
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	4.1 MB
DHCP features	DHCP client
IGMP snooping	Yes
Security algorithms	SNMP, SSL/TLS
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
Multicast support	Yes
Rack mounting	Yes
Product color	Black
LED indicators	Yes
Built-in processor	Yes
Processor frequency	125 MHz
Memory type	DRAM
Flash memory	16 MB
Noise level	0 dB
Fanless	Yes
Mean time between failures (MTBF)	710519 h
AC input voltage	100 - 240 V
Power consumption (max)	10.1 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Heat dissipation	34.46 BTU/h
Width	11" (280 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Weight	2.8 lbs (1.27 kg)
Certification	EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Harmonized System (HS) code	85176990
