The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance
All ports can transmit streams at high speeds without delay.

Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.

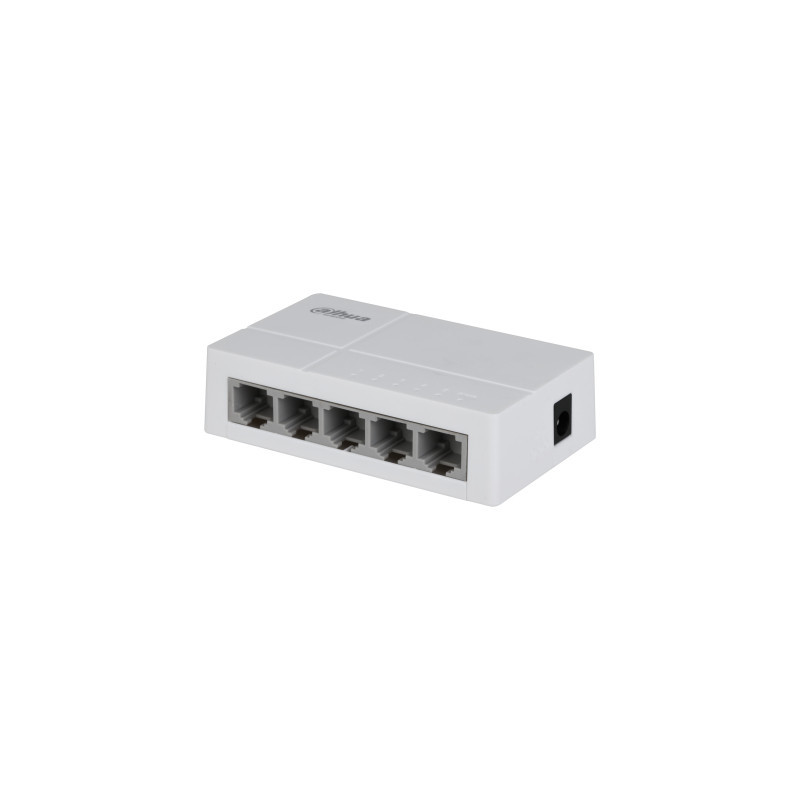

Dahua Technology PoE DH-SF1005L. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. DC input voltage: 5 V. Power over Ethernet (PoE). Form factor: Desktop

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	5
Uplink ports quantity	1
10G support	No
Copper ethernet cabling technology	10BASE-T
Cable types supported	Cat5e, Cat6
Flow control support	Yes
Ethernet LAN data rates	10,100 Mbit/s
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Forwarding rate	0.744 Mpps
Packet buffer memory	0.768 MB
Rack mounting	No
Form factor	Desktop
Product color	Light grey
LED indicators	Yes
Mean time between failures (MTBF)	952.5 h
Power source	DC/PoE
DC input voltage	5 V
Input current	1 A
Power consumption (typical)	0.1 W
Power consumption (max)	0.5 W
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	3.4" (86.4 mm)
Depth	2.05" (52 mm)
Height	0.906" (23 mm)
Weight	4.23 oz (120 g)
Package width	4.33" (110 mm)
Package depth	3.66" (93 mm)
Package height	2.56" (65 mm)
Package weight	8.11 oz (230 g)
