Gigabit Network Goes Further
with AV1000 Powerline
HomePlug AV2

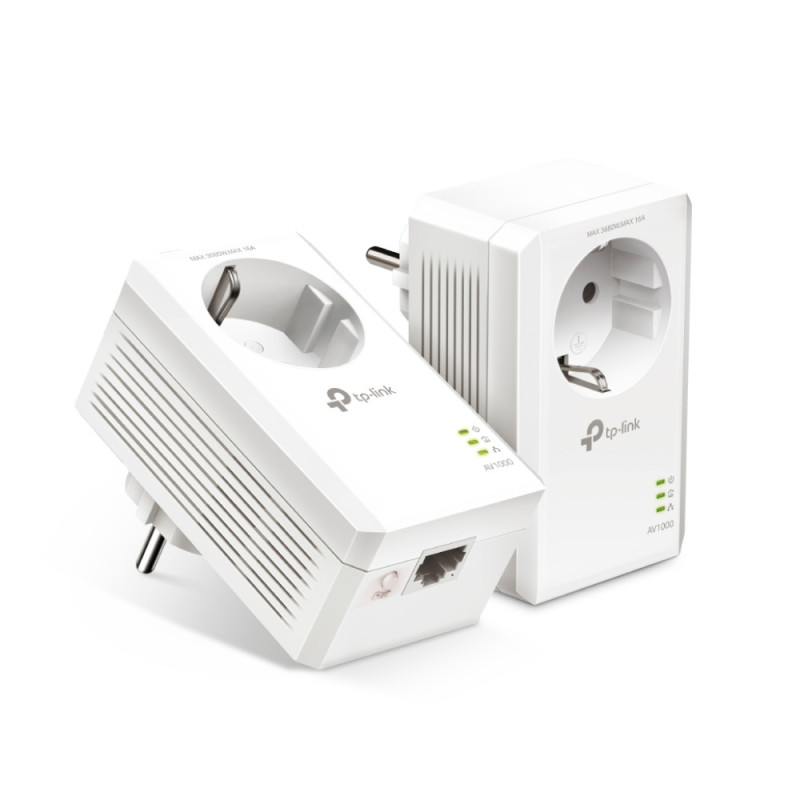

AV1000 Gigabit Passthrough Powerline Starter Kit
TL-PA7017P KIT

1000 Mbps!
Perfect for Bandwidth-Hungry Activities
Coming with advanced HomePlug AV2 technology, TL-PA7017P KIT provides users with high-speed data transfer rates of up to 1000 Mbps—ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streaming, online gaming, and large file transfers.

Gigabit Port for
Ultra-Fast Data Transfer
With one Gigabit Ethernet port, TL-PA7017P KIT allows users to connect a bandwidth-intensive device to the internet at high speeds, ensuring smooth streaming for Ultra HD videos. This makes the TL-PA7017P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router. Plug another powerline adapter into a wall socket in another room. Connect it to your internet enabled device via Ethernet—and you’re done!

Extra Power Outlet for Additional Devices
Finding it hard to plug in your devices? The TL-PA7017P KIT has an integrated AC pass-through power socket. Your powerline adapter can now be used like a traditional electrical outlet. Plug your smart TV or game consoles into the adapter. No socket left to waste.

Up to 85% Power Saved
The future’s looking green for powerline adapters. TL-PA7017P KIT’s practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduces its energy consumption by up to 85%

TP-Link TL-PA7017P KIT. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Power plug: Type E / F. Power consumption (typical): 2.3 W, Power consumption (standby): 0.5 W. Product color: White, LED indicators: LAN, PLC, Power, Certification: CE. Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP. Width: 2.28" (58 mm), Depth: 1.65" (42 mm), Height: 3.74" (95 mm)

Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Wi-Fi	No
Networking standards	IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power plug	Type E / F
Built-in power socket	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	11811" (300 m)
Encryption button	Yes
Plug and Play	Yes
Power consumption (typical)	2.3 W
Power consumption (standby)	0.5 W
Product color	White
LED indicators	LAN, PLC, Power
Certification	CE
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	2.28" (58 mm)
Depth	1.65" (42 mm)
Height	3.74" (95 mm)
Compliance certificates	RoHS
Package width	7.48" (190 mm)
Package depth	5.35" (136 mm)
Package height	3.94" (100 mm)
Package weight	20.5 oz (580 g)
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85171800
