Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities

Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

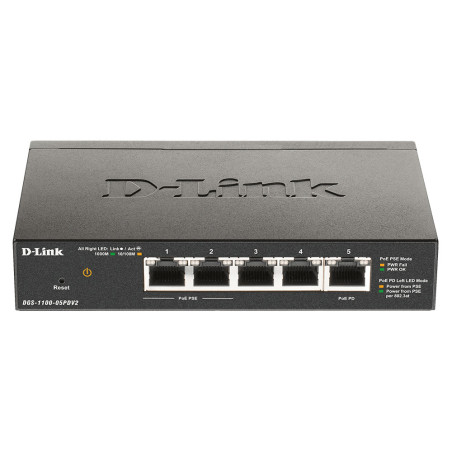

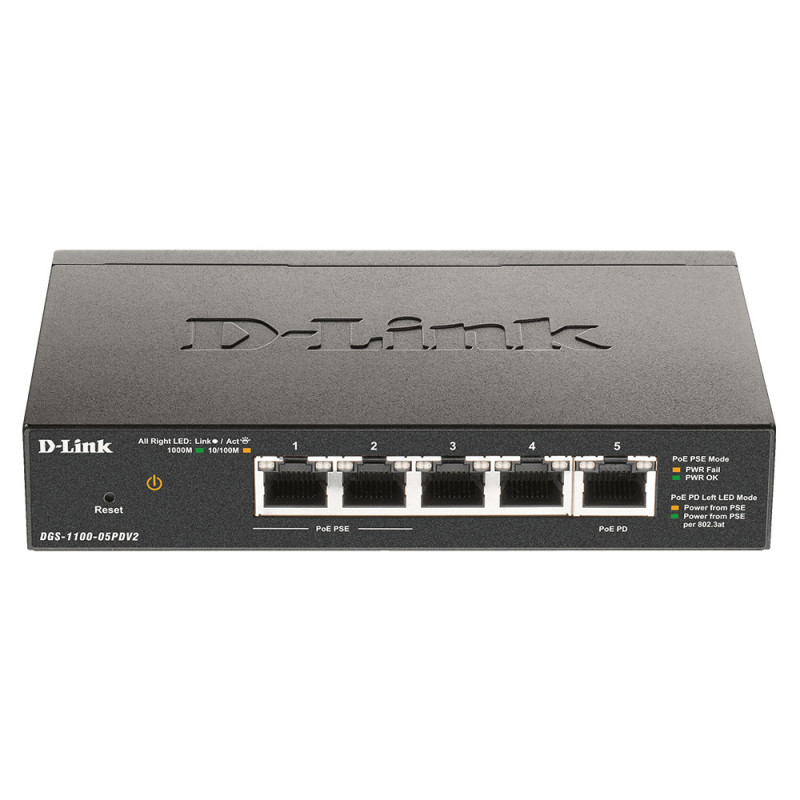

D-Link DGS-1100-05PDV2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	10000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Number of trunks	1
Number of queues	4
Jumbo frames	9216
Packet buffer memory	1 MB
DHCP features	DHCP client
IGMP snooping	Yes
IGMP entries	128
Static port security	Yes
SSH/SSL support	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
MAC address entries	Static MAC address entries
Rack mounting	No
Product color	Black
Flash memory	2 MB
Noise level	0 dB
Fanless	Yes
Mean time between failures (MTBF)	2357475 h
Power source	PoE
Power supply included	No
Power consumption (typical)	3.24 W
Power consumption (max)	24.08 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	2
Power over Ethernet (PoE) power per port	18 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Width	5.91" (150 mm)
Depth	3.82" (97 mm)
Height	1.1" (28 mm)
Weight	13.4 oz (380 g)
Compliance certificates	BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Harmonized System (HS) code	85176990
