Agile UST laser display
Drive engagement and communication with an affordable display, up to 150", that will improve productivity in any environment.
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-770F's bright, 1080p image, scalable up to 150", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.

Scalable from 49-150", display sizes can be optimised for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.

Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygenic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

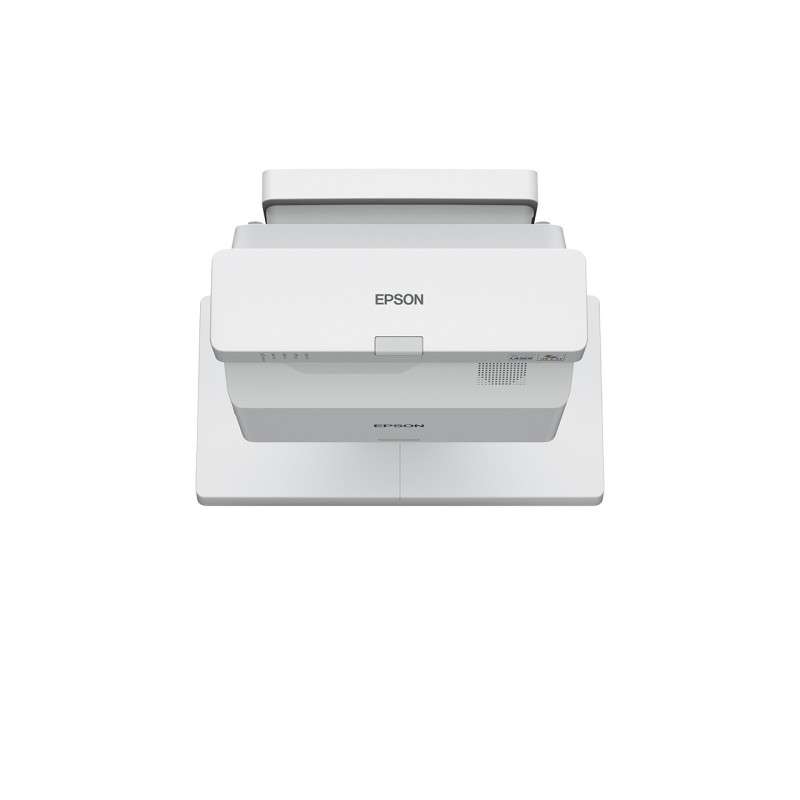

Epson EB-770F. Projector brightness: 4100 ANSI lumens, Projector native resolution: 1080p (1920x1080), Contrast ratio (typical): 2500000:1. Light source type: Laser, Service life of light source: 30000 h. Throw ratio: 0.25 - 0.35:1. Noise level: 37 dB. RMS rated power: 16 W

Projector brightness	4100 ANSI lumens
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:9
Screen size compatibility	60 - 150"
Keystone correction, horizontal	- 3 - 3°
Keystone correction, vertical	- 3 - 3°
Light source type	Laser
Service life of light source	30000 h
Throw ratio	0.25 - 0.35:1
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
Composite video in	1
Component video (YPbPr/YCbCr) in	0
USB 2.0 ports quantity	0
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Mini-USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Headphone outputs	1
Audio Return Channel (ARC)	No
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	No
Noise level	37 dB
HDCP	No
Screen mirroring	Yes
High Dynamic Range (HDR) supported	No
RMS rated power	16 W
Number of built-in speakers	1
TV tuner integrated	No
Built-in display	No
Power consumption (typical)	197 W
Power consumption (standby)	0.5 W
Width	14" (356 mm)
Depth	15.6" (395 mm)
Height	5.24" (133 mm)
Handheld remote control	Yes
Cables included	AC
