Flexible, HD-Ready WXGA display
With detailed WXGA resolution and the versatility to be positioned just about anywhere, this durable projector will provide years of service.

The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content on screen sizes up to 320 inches. 3,800-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.

Years of uninterrupted meetings
With a lamp life of up to 17,000 hours in Eco mode.

Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-W49 can be added to a company network or upgraded for wireless device access at a later stage (optional accessory required).

Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.

High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

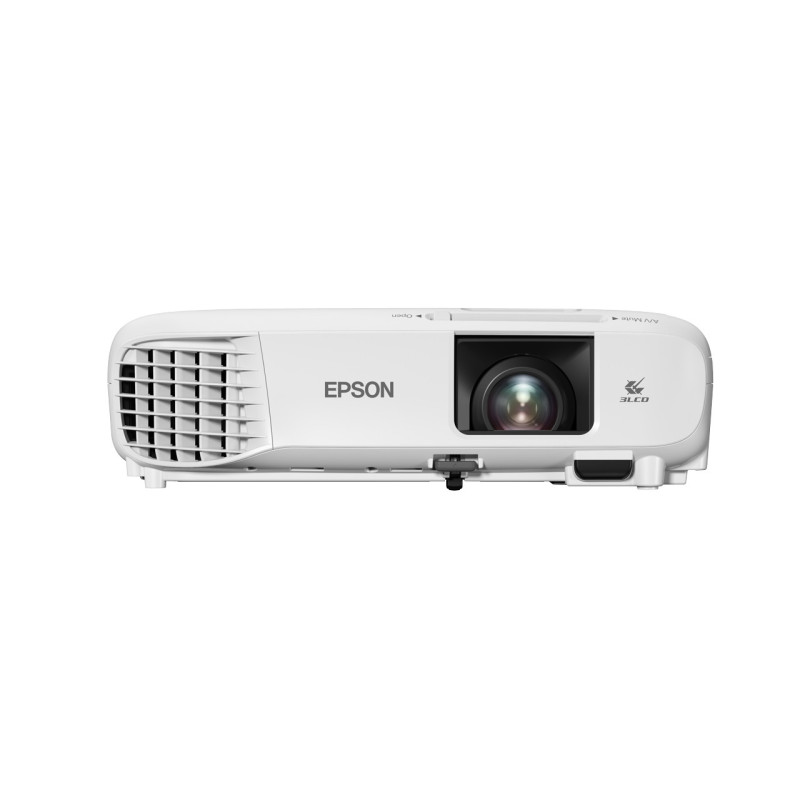

Epson EB-W49. Projector brightness: 3800 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 8000 h, Service life of light source (economic mode): 17000 h. Focus: Manual, Focal length range: 16.9 - 20.28 mm, Aperture range (F-F): 1.49 - 1.72. Video processing: 10 bit, Video color modes: Dynamic, Cinema, Presentation, sRGB, Blackboard. Serial interface type: RS-232C, HDMI connector type: Full-size

Projector brightness	3800 ANSI lumens
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	16000:1
Native aspect ratio	16:10
Screen size compatibility	33 - 320"
Supported aspect ratios	16:10
Number of colors	1.07 billion colors
Projector brightness (economic mode)	2600 ANSI lumens
Vertical scan range	100 - 120 Hz
Keystone correction, horizontal	-30 - 30°
Keystone correction, vertical	-30 - 30°
Matrix size	0.59"
Light source type	Lamp
Service life of light source	8000 h
Service life of light source (economic mode)	17000 h
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Focus	Manual
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
Zoom capability	Yes
Zoom type	Manual
Zoom ratio	1.2:1
Throw ratio	1.30 - 1.56:1
Full HD	No
3D	No
Video processing	10 bit
Video color modes	Dynamic, Cinema, Presentation, sRGB, Blackboard
VGA (D-Sub) ports quantity	3
HDMI ports quantity	2
Composite video in	1
Component video (YPbPr/YCbCr) in	0
DVI port	No
Audio (L/R) in	0
Serial interface type	RS-232C
HDMI connector type	Full-size
S-Video inputs quantity	0
USB 2.0 ports quantity	1
USB 2.0 Type-B ports quantity	1
PC Audio in	Yes
PC Audio out	Yes
PC in (D-Sub)	Yes
AC (power) in	Yes
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Card reader integrated	No
Noise level	37 dB
Noise level (economic mode)	28 dB
Noise level (standby)	28 dB
Preset modes	Blackboard, Dynamic, Presentation, Theatre, sRGB
On Screen Display (OSD)	Yes
Country of origin	Philippines
Built-in speaker(s)	Yes
RMS rated power	5 W
Number of built-in speakers	1
Product type	Standard throw projector
Market positioning	Portable
Product color	White
Placement	Ceiling, Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
Power consumption (typical)	327 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	225 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Software support	via: AMX, Crestron (Network), Control4, Extron
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight	5.95 lbs (2.7 kg)
Width	11.9" (302 mm)
Depth	9.8" (249 mm)
Height	3.43" (87 mm)
Package width	13.8" (350 mm)
Package depth	15" (380 mm)
Package height	6.3" (160 mm)
Package weight	8.84 lbs (4.01 kg)
Handheld remote control	Yes
Batteries included	Yes
Cables included	AC, HDMI
WLAN adapter included	Yes
Bundled software	EasyMP Network Projection, Epson Projektor Management
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Pallet weight	0 oz (0 g)
Quantity per pallet (UK)	78 pc(s)
Pallet weight (UK)	0 oz (0 g)
Harmonized System (HS) code	85286200
Supported network protocols	PJLink
USB display function	3 in 1: Image / Mouse / Sound
