High brightness in compact format

With a long life cycle, the PE506UL brings an exceptionally low cost of ownership for cost-conscious users requiring professional and reliable projection performance. Lighter in weight and more compact compared to its predecessor, yet this powerful projector generates a higher brightness level at 5,200 ANSI lumen and the vivid brilliance of 3 LCD technology.

With wireless presentation and screen sharing capability, versatile adjustability, and compatibility with leading control systems, the PE506UL is feature packed for classrooms, training rooms and meeting rooms.

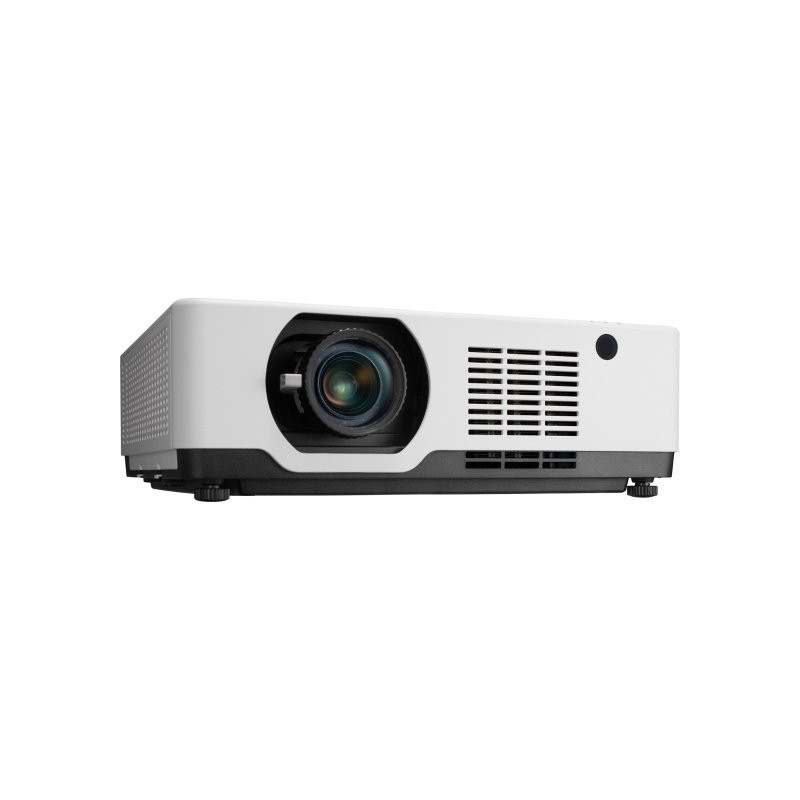

NEC PE506UL. Projector brightness: 5200 ANSI lumens, Projection technology: LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Horizontal lens shift range: -29 - 29%, Vertical lens shift range: 0 - 60%. Noise level: 37 dB, Noise level (economic mode): 27 dB. RMS rated power: 16 W

Projector brightness	5200 ANSI lumens
Projection technology	LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	3000000:1
Native aspect ratio	16:10
Projection distance	29.5 - 511.8" (0.75 - 13 m)
Keystone correction, horizontal	-30 - 30°
Keystone correction, vertical	-30 - 30°
Light source type	Laser
Service life of light source	20000 h
Focus	Manual
Zoom capability	Yes
Horizontal lens shift range	-29 - 29%
Vertical lens shift range	0 - 60%
VGA (D-Sub) ports quantity	1
HDMI ports quantity	2
Component video (YPbPr/YCbCr) in	1
USB 2.0 ports quantity	2
USB 2.0 Type-B ports quantity	1
Headphone outputs	1
Microphone in	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Noise level	37 dB
Noise level (economic mode)	27 dB
Built-in speaker(s)	Yes
RMS rated power	16 W
Number of built-in speakers	1
Product type	Large venue projector
Market positioning	Presentation
Product color	White
Built-in display	No
Power source	AC
Power consumption (typical)	335 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	177 W
AC input voltage	120 - 240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 88%
Weight	17.5 lbs (7.95 kg)
Width	15.9" (405 mm)
Depth	14.1" (358 mm)
Height	5.39" (137 mm)
Handheld remote control	Yes
Batteries included	Yes
Cables included	VGA
Manual	Yes
