Visible yet noiseless – bringing a sense of calm to your meeting spaces

Scalable visualisation has never been so silent. With an outstandingly low noise level of just 22dB (ECO mode), the P547UL is quieter than the ticking of a watch.

Thanks to the completely sealed engine, this laser projector is filter-free meaning 20,000 hours of maintenance-free operation. Comprehensive connectivity and optional WiFi provide the utmost flexibility and time saving operation. The enhanced embedded MultiPresenter functionality enables wireless presentation and screen sharing for up to 16 devices simultaneously, out of the box to your meeting room. The technology is future-proof with the capability of processing 4K inputs at 30Hz. Bringing the future of projection to your meeting room has never been easier, quieter and as low maintenance than with the NEC P547UL.

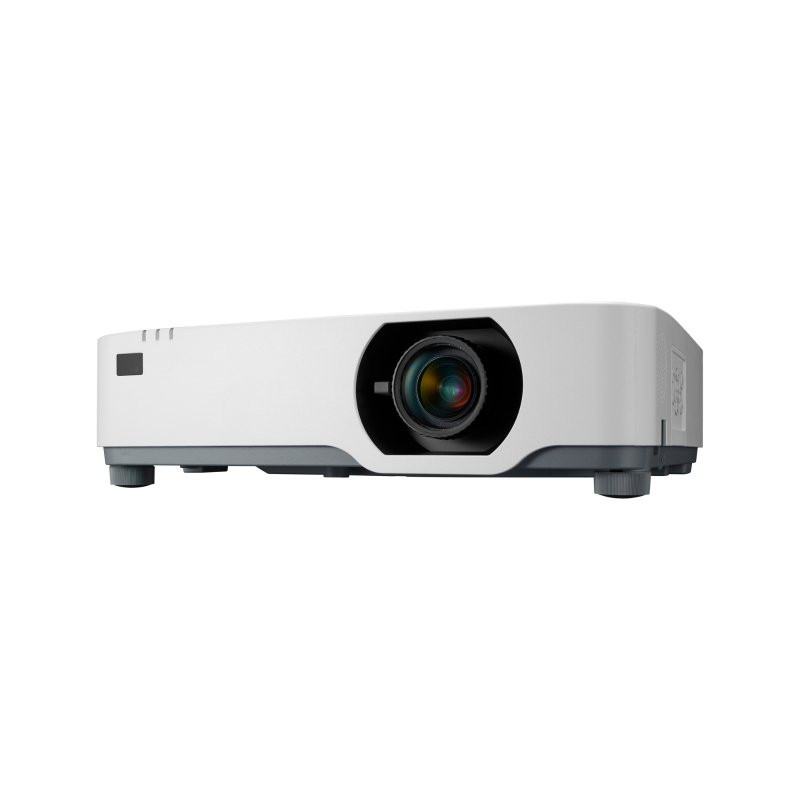

NEC P547UL. Projector brightness: 3240 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Focal length range: 17.2 - 27.7 mm, Aperture range (F-F): 1.5 - 2.1. Analog signal format system: NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, Supported graphics resolutions: 1920 x 1200 (WUXGA), 3840 x 2160, Video color modes: Presentation. Serial interface type: RJ-45, RS-232, HDMI connector type: Full-size, Service port type: USB Type-B

Projector brightness	3240 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	500000:1
Native aspect ratio	16:10
Smart projector	Yes
Screen size compatibility	30 - 300"
Projector brightness	5700 LED lumens
Projection distance	31.5 - 507.9" (0.8 - 12.9 m)
Projector brightness (economic mode)	3240 ANSI lumens
Keystone correction, horizontal	-30 - 30°
Keystone correction, vertical	-30 - 30°
Light source type	Laser
Service life of light source	20000 h
Focus	Manual
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.1
Zoom capability	Yes
Zoom type	Manual
Zoom ratio	1.6:1
Horizontal lens shift range	-29 - 29%
Vertical lens shift range	0 - 60%
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M
Full HD	Yes
3D	No
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
Video color modes	Presentation
VGA (D-Sub) ports quantity	1
HDMI ports quantity	2
Composite video in	0
Component video (YPbPr/YCbCr) in	0
DVI port	No
Audio (L/R) in	2
Serial interface type	RJ-45, RS-232
HDMI connector type	Full-size
HDBaseT port	Yes
Service port type	USB Type-B
USB 2.0 ports quantity	1
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Smart TV	No
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN (RJ-45) ports	1
Card reader integrated	No
Noise level	26 dB
Interactive	No
Noise level (economic mode)	22 dB
HDCP	Yes
Projection modes	Ceiling, Front
On Screen Display (OSD)	Yes
Number of OSD languages	30
HID support	Yes
Certification	CE; EAC; ErP; RoHS; TUEV, TÜV
Built-in speaker(s)	Yes
RMS rated power	20 W
Number of built-in speakers	1
Product type	Standard throw projector
Market positioning	Home cinema
Product color	White
Placement	Ceiling, Desktop
LED indicators	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
Power consumption (typical)	293 W
Power consumption (standby)	1.6 W
Power consumption (max)	293 W
Power consumption (economy mode)	220 W
Recommended gender	Any gender
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Weight	21.4 lbs (9.7 kg)
Width	18.9" (480 mm)
Depth	16" (407 mm)
Height	4.8" (122 mm)
Handheld remote control	Yes
Remote control type	IR
Batteries included	Yes
Cables included	AC
Manual	Yes
Number of batteries supported	2
