Find Wired and Wireless Network from
Any Outlet with Your Home's Electrical System

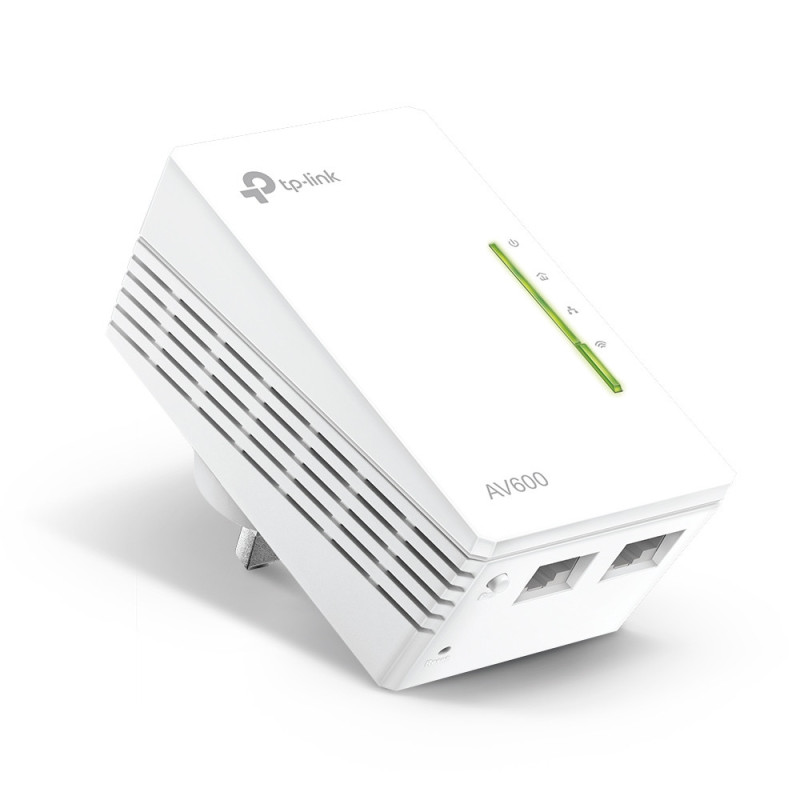

300Mbps AV600 Powerline Wi-Fi Extender

Extend Your Network to Any Room Using Existing Powerline
The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates over a household electric circuit for up to 300 meters. Bringing wired and wireless network simultaneously to anywhere there is a power outlet.

Plug & Play, No Configuration Required
Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.

Pair for More Security
Press the “Pair” button on both adapters to create a more secure network.

Wi-Fi Auto-Sync for Unified Wi-Fi Network
Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

Two Ethernet Ports for Wired Connections
With two Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.

Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.

TP-Link TL-WPA4220. Maximum data transfer rate: 600 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, Ethernet LAN interface type: Fast Ethernet. Power consumption (typical): 5.086 W, Power consumption (standby): 4.17 W. Product color: White, Certification: CE, FCC. Windows operating systems supported: Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7..., Mac operating systems supported: macOS. Width: 3.7" (94 mm), Depth: 2.13" (54 mm), Height: 1.57" (40 mm)

Maximum data transfer rate	600 Mbit/s
Ethernet LAN	Yes
Wi-Fi	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	2
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	11,54,300 Mbit/s
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Maximum operating distance	11811" (300 m)
Encryption button	Yes
Plug and Play	Yes
Power consumption (typical)	5.086 W
Power consumption (standby)	4.17 W
Product color	White
LED indicators	Yes
Certification	CE, FCC
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64, Yes
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	macOS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	3.7" (94 mm)
Depth	2.13" (54 mm)
Height	1.57" (40 mm)
Compliance certificates	RoHS
Package width	7.48" (190 mm)
Package depth	5.35" (136 mm)
Package height	3.94" (100 mm)
Package weight	10.9 oz (310 g)
Quantity per pack	1 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
