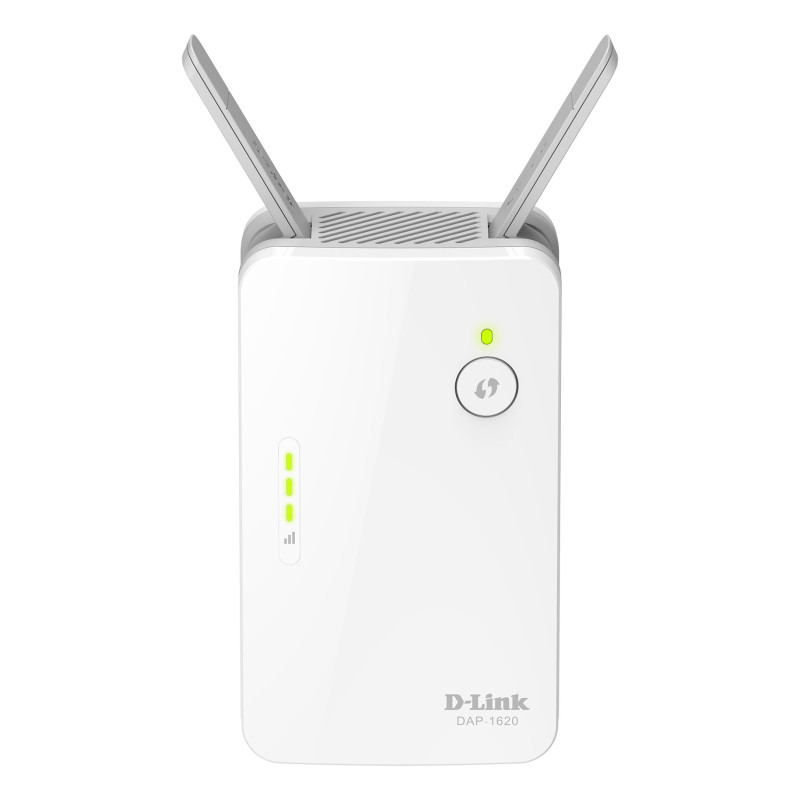

The DAP-1620 AC1200 Wi-Fi Range Extender is a portable plug-in repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 1200 Mbps, yet fits in the palm of your hand.

Easy to Set Up, Easy to Use
Set up is simple. There is no need for a computer as you can use the supported QRS Mobile app on your iPhone, iPad, or iPod touch or Android mobile device to set up the DAP-1620 easily. Alternatively, you can use one-touch configuration by pushing the WPS push-button on the DAP-1620 and on the router or AP you want to extend, and the DAP-1620 will automatically configure itself for you. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.

Extend Your Wireless Network
Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a blazing-fast, reliable wireless connection. Alternatively, use the built-in Gigabit Ethernet port and your home’s existing wired Ethernet cabling to extend wireless coverage without worrying about signal strength.

Compact, Convenient Design
This compact device is ideal for use at home or a small office, as it does not take up much space and is ready to use by simply plugging it in. The bright Signal Indicator LED makes finding a suitable location a cinch. Its diminutive wall-plug design easily saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.

D-Link DAP-1620/E. Type: Network repeater. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac, Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n). Product color: White, Certification: FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified. AC input voltage: 110-240 V, AC input frequency: 50 - 60 Hz. Width: 4.72" (120 mm), Depth: 2.32" (59 mm), Height: 1.65" (42 mm)

Type	Network repeater
WPS push button	Yes
Antennas quantity	2
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	1200 Mbit/s
Security algorithms	WPA, WPA2, WPS
Ethernet LAN (RJ-45) ports	1
Product color	White
LED indicators	Yes
Reset button	Yes
Certification	FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	4.72" (120 mm)
Depth	2.32" (59 mm)
Height	1.65" (42 mm)
Weight	4.9 oz (139 g)
Package width	4.09" (104 mm)
Package depth	6.34" (161 mm)
Package height	3.7" (94 mm)
Package weight	10.6 oz (300 g)
Shipping (inner) case height	7.56" (19.2 cm)
Shipping (inner) case width	9.02" (22.9 cm)
Shipping (inner) case length	19.6" (49.7 cm)
Shipping (inner) case net weight	6.61 lbs (3 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	590 lbs (267.6 kg)
Number of cartons per pallet (air)	70 pc(s)
Quantity per pallet (air)	700 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	43.3" (110 cm)
Pallet height (air)	58.2" (147.9 cm)
Pallet gross weight (sea)	819.9 lbs (371.9 kg)
Number of cartons per pallet (sea)	100 pc(s)
Quantity per pallet (sea)	1000 pc(s)
Pallet height (sea)	81.1" (2.06 m)
Shipping (inner) case weight	7.63 lbs (3.46 kg)
Harmonized System (HS) code	85176990
