What This Product Does

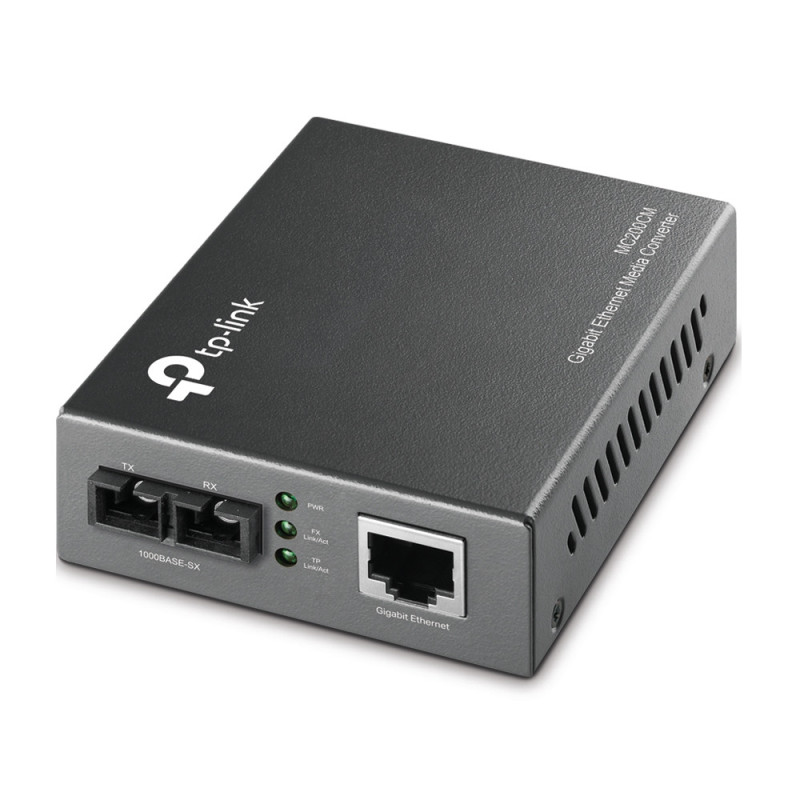

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

TP-Link MC200CM V3. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 21653.5" (550 m), Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Product color: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (typical): 5.5 W

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Fiber ethernet cabling technology	1000BASE-FX, 1000BASE‑SX
Auto MDI/MDI-X	Yes
Cable types supported	Cat6
Maximum transfer distance	21653.5" (550 m)
Wavelength	850 nm
Fiber mode structure	Multi-mode
Internal	Yes
LED indicators	Activity, Link
Product color	Black
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power consumption (typical)	5.5 W
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Package width	6.5" (165 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	15.5 oz (440 g)
Compliance certificates	RoHS
Certification	FCC, CE
