PoE Switches for Your Ultra Convenience

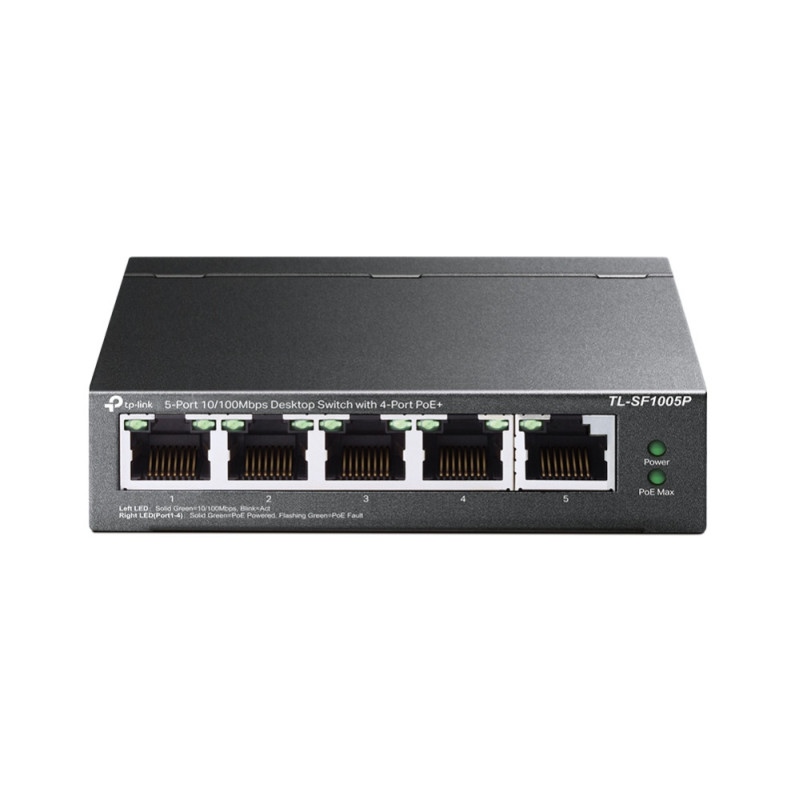

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

TP-Link TL-SF1005P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE)

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3af, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Forwarding rate	0.744 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	2000
Rack mounting	No
Stackable	No
Product color	Black
LED indicators	Yes
Maximum cable length	3937" (100 m)
Fanless	Yes
Power source	DC/PoE
Power supply included	No
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	74 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	67 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	252.34 BTU/h
Width	3.93" (99.8 mm)
Depth	3.86" (98 mm)
Height	0.984" (25 mm)
User guide	Yes
AC adapter included	Yes
Package type	Box
Package width	5.16" (131 mm)
Package depth	7.72" (196 mm)
Package height	4.76" (121 mm)
Package weight	26.8 oz (760 g)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
