PoE Switches for Your Ultra Convenience

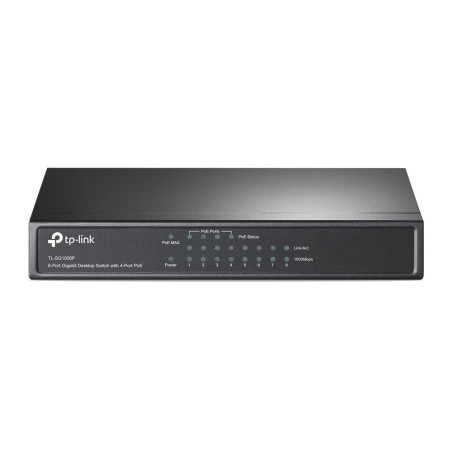

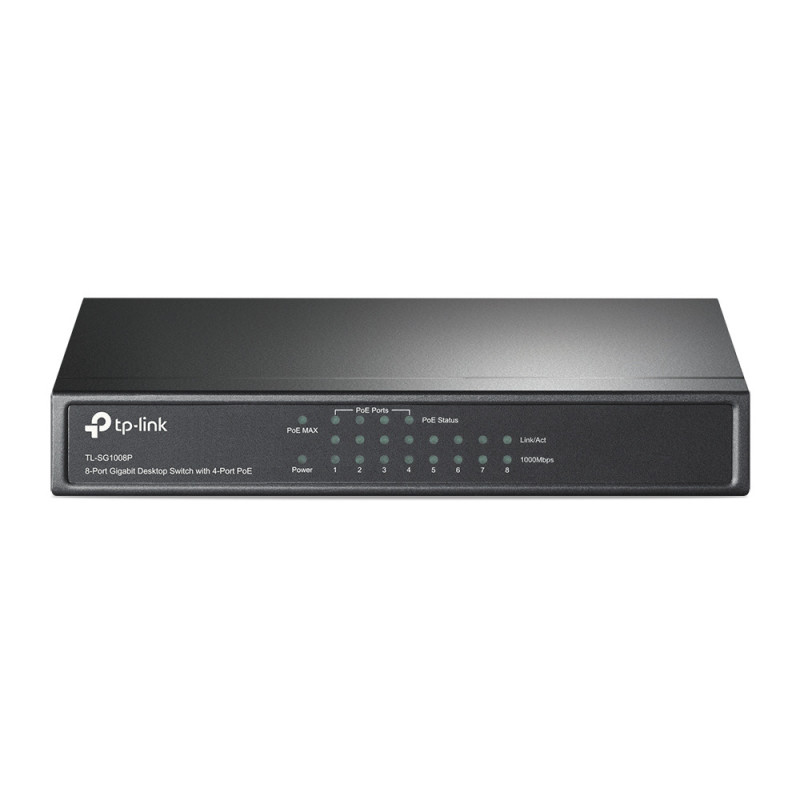

8-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

TP-Link TL-SG1008P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)

Switch type	Managed
Quality of Service (QoS) support	No
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.904 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
IGMP snooping	Yes
Rack mounting	No
Stackable	No
Product color	Gray
Housing material	Metal
LED indicators	Yes
Maximum cable length	3937" (100 m)
Fanless	Yes
Power source	DC/PoE
Power supply included	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	75 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	64 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	225.75 BTU/h
Width	6.73" (171 mm)
Depth	3.86" (98 mm)
Height	1.06" (27 mm)
Cables included	AC
User guide	Yes
Package type	Box
Package width	8.78" (223 mm)
Package depth	11" (280 mm)
Package height	2.68" (68 mm)
Package weight	31.7 oz (900 g)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance	Yes
