10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

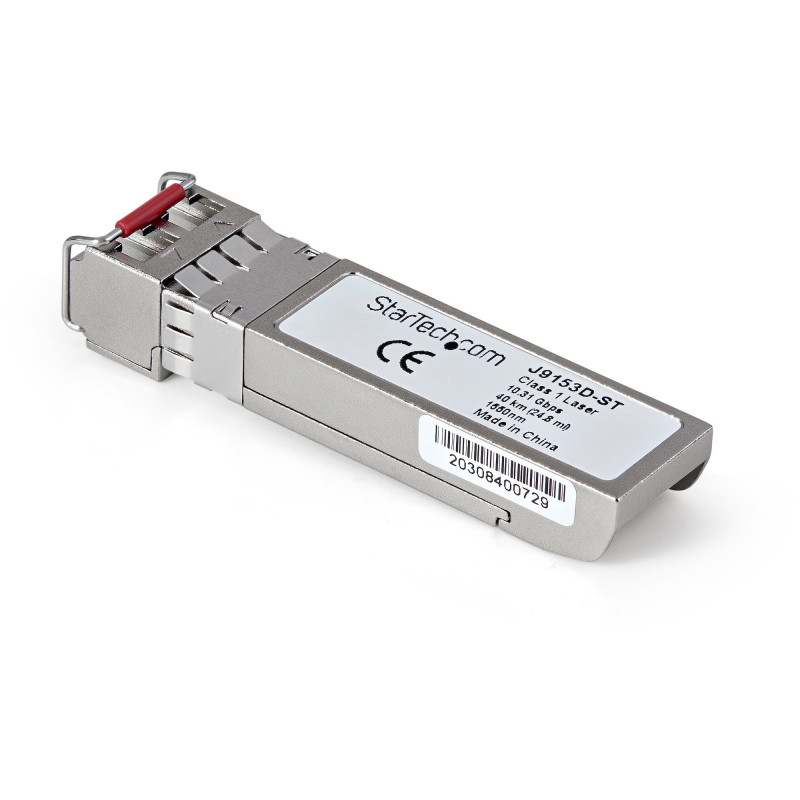

The J9153D-ST is an HPE JD093Bcompatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-ER compliant networks, with a maximum distance of up to 40 km (24.8 mi).

Technical Specifications:

• Wavelength: 1550nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 40 km (24.8 mi)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage


StarTech.com J9153D-ST. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product color: Silver, Mean time between failures (MTBF): 498745585 h, Brand compatibility: HP. Power consumption (typical): 1.6 W. Width: 2.3" (58.4 mm), Depth: 0.547" (13.9 mm), Height: 0.539" (13.7 mm). Quantity per pack: 1 pc(s)

SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
SFP transceiver standard	ER
Maximum transfer distance	1574803.1" (40000 m)
Wavelength	1550 nm
Fiber ethernet cabling technology	10GBASE
Digital Diagnostics Monitoring (DDM)	Yes
Product color	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	498745585 h
Brand compatibility	HP
Compatible products	J9153D
Power consumption (typical)	1.6 W
Width	2.3" (58.4 mm)
Depth	0.547" (13.9 mm)
Height	0.539" (13.7 mm)
Weight	0.847 oz (24 g)
Quantity per pack	1 pc(s)
Package width	3.54" (90 mm)
Package depth	4.53" (115 mm)
Package height	1.22" (31 mm)
Package weight	1.76 oz (50 g)
Master (outer) case width	3.54" (90 mm)
Master (outer) case length	4.53" (115 mm)
Harmonized System (HS) code	85369010
Master (outer) case height	1.22" (31 mm)
Quantity per master (outer) case	1 pc(s)
