Advanced Protection for Evolving Threat
Cyber attacks of today are multiplying in large volumes along with more diverse forms of threats including – crypto jacking, malware, surging ransomware variants, and many more! ZyWALL ATP Firewall is empowered with smart cloud intelligence giving seamless protection against all those Advanced Persistent Threats, achieving ultimate in-depth defense of future unknown attacks.

Block it. Learn it. Prevent it.

Block Unknown Threats
Multi-Layer Protection from default bundled security service can block malicious and suspicious traffic, ensuring wellbeing of your business network.

Learn Unknown Threats
Cloud Intelligence identifies every incoming threats so the Cloud Threat Database keeps learning, evolving, and growing stronger after each attack.

Prevent Unknown Threats
Cloud Intelligence extracts top ranked threat information and gives all ATP firewalls constant updates. This global sharing synergy empowers ATP firewalls to prevent all hidden threats.

Cloud Machine Learning
Zyxel Cloud intelligence identifies unknown files from all ATP Firewalls, accumulates results in database and gives all ATP a daily update, effectively turning every new threat into a new piece of intelligence and continuously grow with self-evolving security ecosystem that adapt to new advanced attacks at all times.

Sandboxing
Sandboxing is an isolated cloud environment that contains unknown files to identify new malware types that conventional static security mechanism cannot detect, ensuring protection against zero-day attacks.

Reporting & Analytics
ATP Firewall dashboard gives user-friendly infographic traffic summary and threat statistics. Users can also utilize SecuReporter for further comprehensive threat analysis.

ATP Dashboard
ATP Firewall dashboard displays traffic summary since-reboot and in-depth seven-day threat statistics with hit counts.

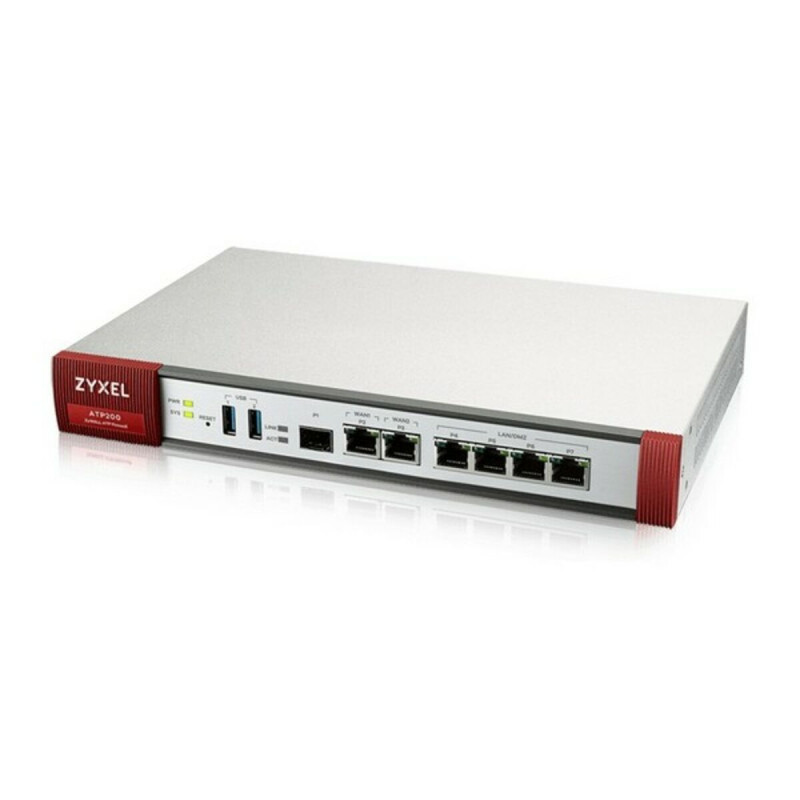

Zyxel ATP200. Firewall throughput: 2 Gbit/s, VPN throughput: 0.5 Gbit/s, IPSec VPN throughput: 40 Gbit/s. Heat dissipation: 45.38 BTU/h, Mean time between failures (MTBF): 529688.2 h. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s, WAN connection: Ethernet (RJ-45). Form factor: Desktop. Input current: 2.5 A, Power consumption (typical): 13.3 W

Firewall throughput	2 Gbit/s
VPN throughput	0.5 Gbit/s
IPSec VPN throughput	40 Gbit/s
SSL performance	10 transactions/sec
UTM throughput (fast/full scan)	450/450 Gbit/s
Maximum connections (SPI)	2000
HTTPS encryption	Yes
Heat dissipation	45.38 BTU/h
Mean time between failures (MTBF)	529688.2 h
Number of VLANs	16
Active TCP connections (max)	600000
Stateful Packet Inspection (SPI)	Yes
Content filtering	1
LED indicators	Yes
On/off switch	Yes
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	4
Ethernet LAN data rates	10,100,1000 Mbit/s
Number of console ports	1
WAN connection	Ethernet (RJ-45)
Ethernet DMZ ports quantity	1
SFP module slots quantity	1
Rack mounting	Yes
Form factor	Desktop
Built-in fan	Yes
Input current	2.5 A
Power consumption (typical)	13.3 W
Certification	FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI, LVD (EN60950-1), BSMI
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Dimensions (WxDxH)	10.7 x 7.36 x 1.42" (272 x 187 x 36 mm)
Weight	3.09 lbs (1.4 kg)
Package width	16.8" (427 mm)
Package height	2.87" (73 mm)
Package depth	9.72" (247 mm)
Package weight	5.34 lbs (2.42 kg)
Rack mount kit	Yes
Firewall throughput	2000 Mbit/s
VPN throughput	500 Mbit/s
Harmonized System (HS) code	85176990
