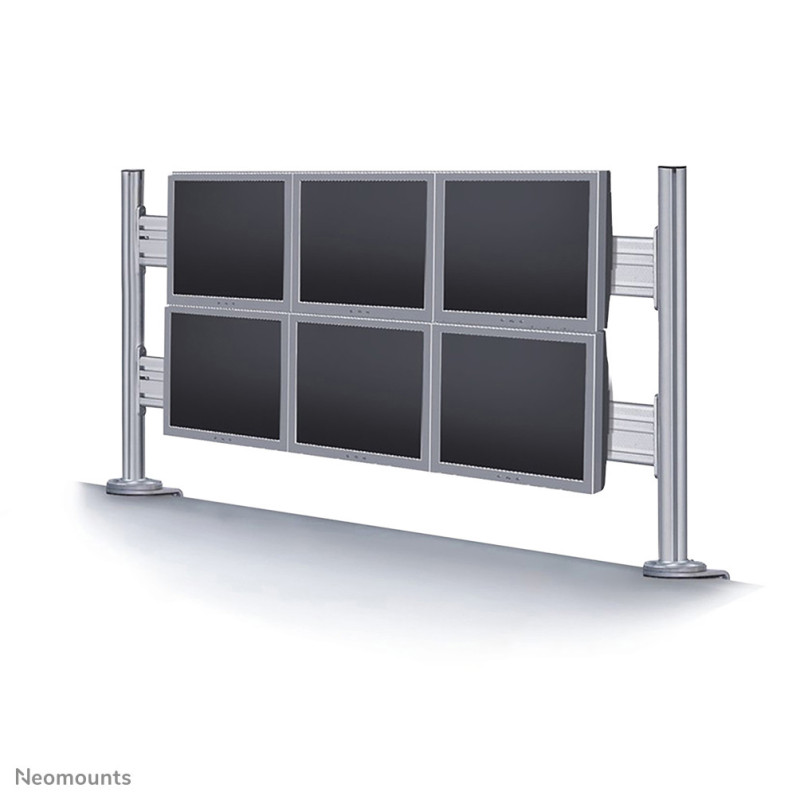

With the Neomounts FPMA-DTB200 toolbar desk rail, you can install up to 6 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.

There are various monitor brackets available that can be combined with the FPMA-DTB200 toolbar desk mount:
* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.
* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.

Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB200 toolbar desk mount features cable clips so cables can be easily and neatly routed.

Neomounts FPMA-DTB200. Mounting: Clamp, Minimum screen size: 10", Maximum screen size: 24", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment. Product color: Silver

Number of displays supported	6
Maximum weight capacity (per display)	22 lbs (10 kg)
Maximum screen size	24"
Mounting type	Desk
Minimum screen size	10"
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Clamp
Panel mounting interface	75 x 75,100 x 100 mm
Height adjustment	Yes
Height adjustment type	Manual
Height adjustment range	0 - 27.6" (0 - 700 mm)
Depth adjustment range	0 - 3.15" (0 - 80 mm)
Product color	Silver
Housing material	Aluminum
Depth	3.15" (80 mm)
Height	27.6" (700 mm)
Weight	21.6 lbs (9.8 kg)
Package width	53.5" (1360 mm)
Package depth	6.69" (170 mm)
Package height	6.69" (170 mm)
Package weight	21.6 lbs (9.8 kg)
Master (outer) case width	53.5" (1360 mm)
Master (outer) case length	6.69" (170 mm)
Master (outer) case height	6.69" (170 mm)
Master (outer) case weight	23.8 lbs (10.8 kg)
Quantity per master (outer) case	1 pc(s)
Country of origin	Taiwan
Master (outer) case net weight	21.6 lbs (9.8 kg)
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	20 pc(s)
Weight (max)	22 lbs (10 kg)
Mounting interface	VESA 75x75 mm
