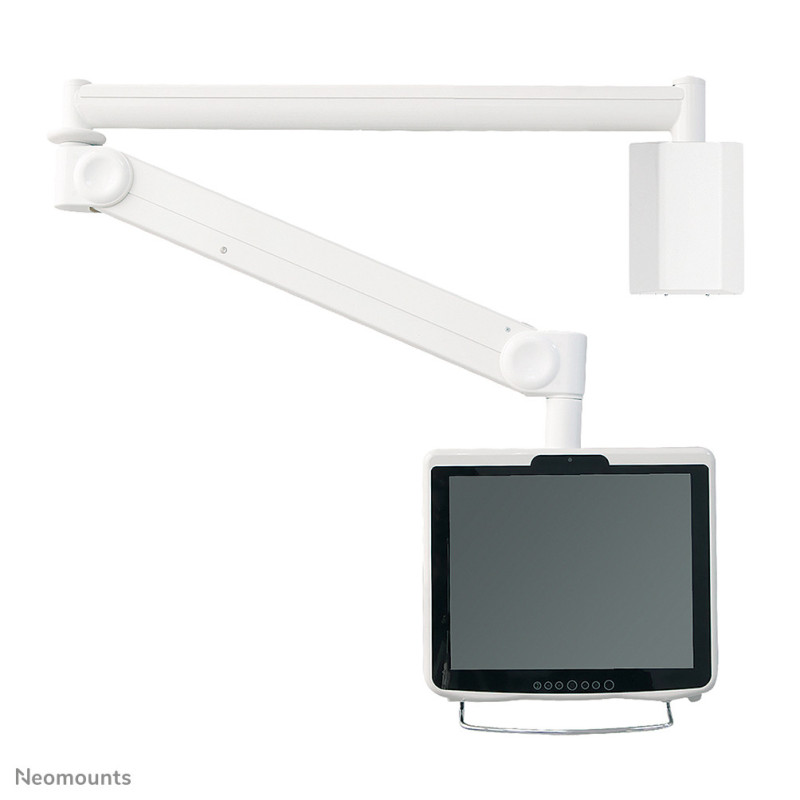

The Neomounts wall mount, model FPMA-HAW100 is a tilt- and swivel wall mount for medical flat screens up to 24". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

Neomounts' unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-HAW100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Neomounts FPMA-HAW100. Maximum weight capacity: 13.2 lbs (6 kg), Minimum screen size: 10", Maximum screen size: 24", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Swivel angle range: 0 - 270°, Tilt angle range: 0 - 55°. Product color: White

Number of displays supported	1
Maximum screen size	24"
Mounting type	Wall
Maximum weight capacity	13.2 lbs (6 kg)
Minimum screen size	10"
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Panel mounting interface	75 x 75,100 x 100 mm
Height adjustment	Yes
Height adjustment type	Gas spring
Height adjustment range	0 - 66.9" (0 - 1700 mm)
Depth adjustment range	0 - 73.6" (0 - 1870 mm)
Tilt adjustment	Yes
Tilt angle range	0 - 55°
Swiveling	Yes
Swivel angle	370°
Swivel angle range	0 - 270°
Rotating	Yes
Number of pivot points	3
Product color	White
Housing material	Aluminum
Depth	73.6" (1870 mm)
Height	66.9" (1700 mm)
Weight	39.2 lbs (17.8 kg)
Package width	39.8" (1010 mm)
Package depth	11.8" (300 mm)
Package height	15.7" (400 mm)
Package weight	31.3 lbs (14.2 kg)
Compatibility	LCD/LED/TFT TVs
Master (outer) case width	39.8" (1010 mm)
Master (outer) case length	11.8" (300 mm)
Master (outer) case height	15.7" (400 mm)
Master (outer) case weight	40.8 lbs (18.5 kg)
Quantity per master (outer) case	1 pc(s)
Country of origin	Taiwan
Master (outer) case net weight	31.3 lbs (14.2 kg)
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	8 pc(s)
Package net weight	31.3 lbs (14.2 kg)
