Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.

Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSH7J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Uniform Color Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

Smart Calibration
Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the property differences between the connected displays, eliminating the need for any additional manual color adjustments. Because it can be done in a matter of minutes with just the click of a remote control, this process is so simple. In addition, calibration can be set to automatically occur at regular intervals and brightness can be adjusted based on the surrounding environment, allowing you to always deliver optimum image quality.

Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSH7J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.

High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VSH7J series, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

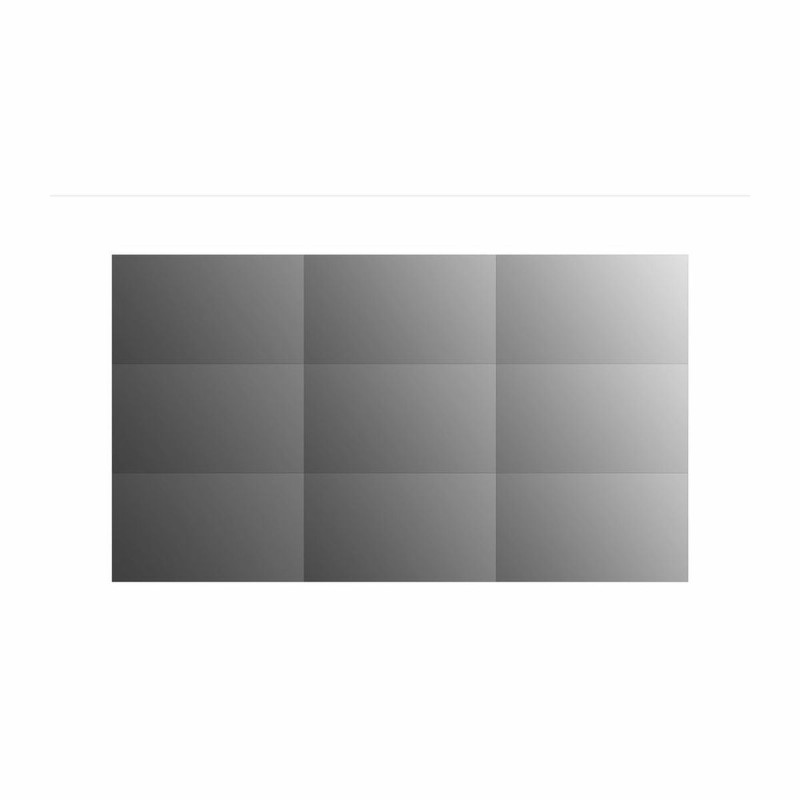

LG 55VSH7J-H.AEU. Display diagonal: 55", Display resolution: 1920 x 1080 pixels, Display brightness: 700 cd/m², HD type: Full HD, Operating hours (hours/days): 24/7. Product color: Black

Display brightness	700 cd/m²
Display diagonal	55"
Display resolution	1920 x 1080 pixels
HD type	Full HD
Panel type	IPS
Aspect ratio	16:9
Display number of colors	1.07 billion colors
Contrast ratio (typical)	1100:1
Response time	8 s
Native refresh rate	50 Hz
Haze rate	28%
Color gamut	72%
Color depth	10 bit
Panel life	60000 h
Operating hours (hours/days)	24/7
Placement supported	Indoor
Orientation	Landscape/Portrait
Bezel width (side)	0.0173" (0.44 mm)
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Product color	Black
HDMI ports quantity	2
HDMI input ports quantity	2
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts in	1
DisplayPorts out	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
RS-232C	Yes
USB port	Yes
USB ports quantity	1
USB version	2.0
HDCP	Yes
HDCP version	1.4/2.2
Power consumption (typical)	220 W
Power consumption (max)	260 W
AC input voltage	120-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Harmonized System (HS) code	85285210
Width	47.7" (1210.5 mm)
Depth	3.41" (86.5 mm)
Height	26.8" (681.2 mm)
Weight	37 lbs (16.8 kg)
Cables included	AC, DisplayPort, LAN (RJ-45)
Mounting kit	Yes
Handheld remote control	Yes
Package width	53.3" (1353 mm)
Package depth	10.4" (263 mm)
Package height	33.7" (855 mm)
Package weight	52 lbs (23.6 kg)
