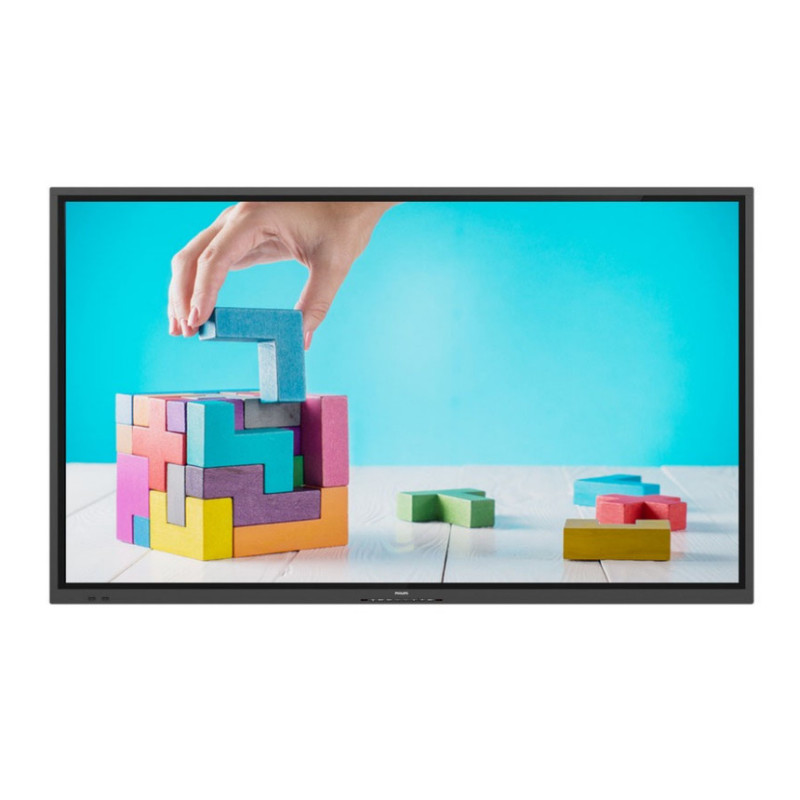

Interactive education display
Featuring multi-touch technology
This interactive display maximises engagement and inspires collaboration with up to 40 touchpoints. Powered by Android 13 and with toughened anti-glare and anti-reflection glass, it’s made to withstand heavy daily use in busy environments.

Philips E-Line 86BDL3152E. Product design: Digital signage flat panel. Display diagonal: 86", Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 16/7. Operating system installed: Android. Product color: Black

Display diagonal	86"
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Panel type	ADS
Touchscreen technology	Infrared
Number of simultaneous touchpoints	40
Multi-touch	Yes
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colors	1.07 billion colors
Pixel pitch	0.0194 x 0.0194" (0.493 x 0.493 mm)
Display diagonal (metric)	86" (218.4 cm)
HDMI ports quantity	2
DVI port	No
DisplayPorts quantity	0
USB port	Yes
Ethernet LAN	Yes
HDMI version	2.0
VGA (D-Sub) input ports	1
USB ports quantity	8
USB connector type	USB Type-A, USB Type-C
USB 2.0 Type-B ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery up to	65 W
Ethernet LAN (RJ-45) ports	2
RS-232C	Yes
Remote (IR) input	1
Remote (IR) output	1
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
OPS module slot	Yes
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	32 W
Product design	Digital signage flat panel
Product color	Black
VESA mounting	Yes
Orientation	Horizontal/Vertical
Screen shape	Flat
Panel mounting interface	800 x 600 mm
Purpose	Universal
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days)	16/7
Mean time between failures (MTBF)	50000 h
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Computer system	Yes
Built-in processor	Yes
Computer system type	System on Chip (SoC)
Processor model	A55
Internal memory	4 GB
On-board graphics card model	ARM Mali-G52
Internal storage capacity	32 GB
Operating system installed	Android
Operating system version	13
Video formats supported	H.263, H.264, H.265, MPEG1, MPEG2, MPEG4, VP9
Audio formats supported	AAC, HE-AAC, MPEG
Image formats supported	BMP, JPEG, PNG
Display width	77" (1957 mm)
Display depth	3.94" (100 mm)
Display height	45.7" (1160 mm)
Package weight	98.5 lbs (44.7 kg)
Handheld remote control	Yes
Batteries included	Yes
Stylus pen	Yes
Number of stylus pens	1
Cables included	AC, DVI, HDMI, IR sensor, RS-232, USB
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certification	CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL
Display resolution at frequency	720 x 400 70Hz 832 x 624 75Hz 1440 x 900 60Hz 1600 x 900 60Hz 1680 x 1050 60Hz 1920 x 1080 60Hz 1024 x 768 60Hz 1152 x 870 75Hz 1280 x 1024 60Hz 1280 x 720 60Hz 3840 x 2160 30, 60Hz 640 x 480 60,67,75Hz 800 x 600 60Hz
