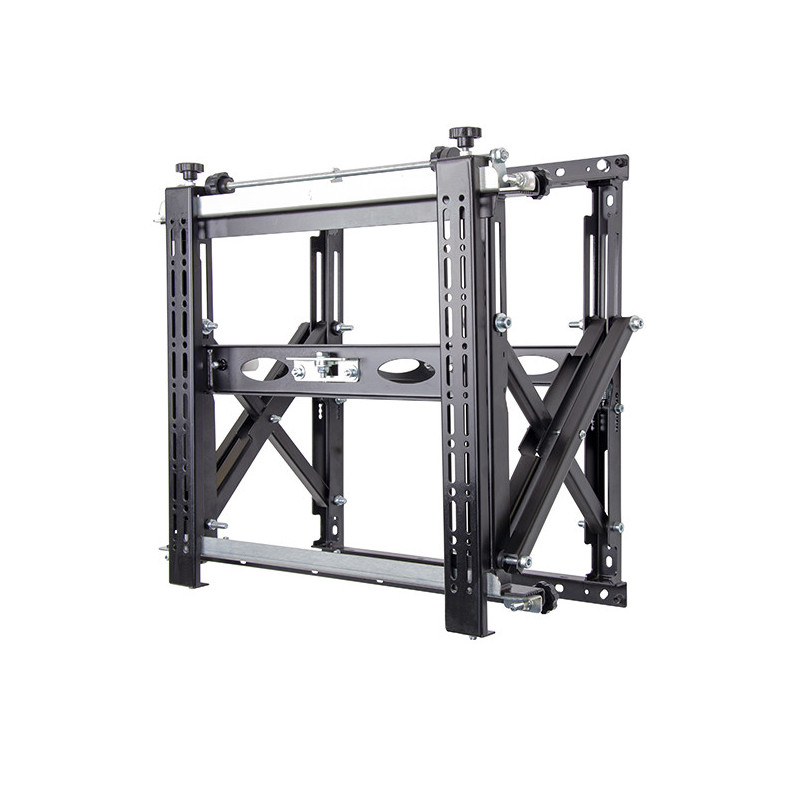

Designed to mount extra-large screens, the heavy duty BT8310XL is capable of mounting screens up to 125kg in both landscape and portrait orientations. With reinforced scissor arms, this wall mount is ideal for mounting the largest sized screens and features an easy to use pop-out function and 8-point micro-adjustment, making installation and alignment into a recessed wall both quick and simple. Access to the rear or sides of the screen for maintenance or cabling is possible through the pop-out feature, with an additional locking kit accessory available (separately) to prevent unauthorised access if required.

B-Tech BT8310XL. Maximum weight capacity: 275.6 lbs (125 kg), Minimum screen size: 42", Maximum screen size: 120", Minimum VESA mount: 7.87 x 3.94" (200 x 100 mm), Maximum VESA mount: 15.7 x 15.7" (400 x 400 mm). Product color: Black

Number of displays supported	1
Maximum screen size	120"
Mounting type	Wall
Maximum weight capacity	275.6 lbs (125 kg)
Minimum VESA mount	7.87 x 3.94" (200 x 100 mm)
Maximum VESA mount	15.7 x 15.7" (400 x 400 mm)
Minimum screen size	42"
Cable management	Yes
Distance to the wall (min)	3.98" (10.1 cm)
Distance to the wall (max)	11.5" (29.3 cm)
Product color	Black
Width	24.4" (620 mm)
Height	21.7" (550.4 mm)
Harmonized System (HS) code	83024200
