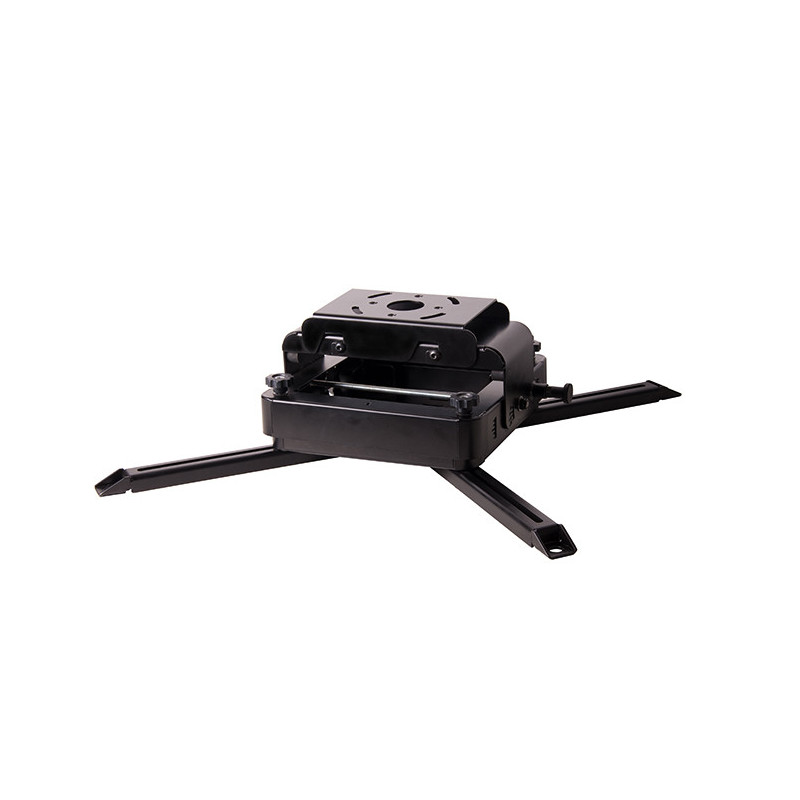

Designed to mount projectors up to 70kg, the BT893 heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any Ø50mm B-Tech pole. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The projector fixes to a mounting plate that can be extended to accommodate larger fixing patterns using the included extension legs, making the BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.

B-Tech BT893. Mounting type: Ceiling, Maximum weight capacity: 154.3 lbs (70 kg), Product color: Black. Width: 31.1" (790.4 mm), Height: 6.42" (163 mm), Depth: 31.1" (790.4 mm). Quantity per master (outer) case: 1 pc(s), Master (outer) case net weight: 25.4 lbs (11.5 kg)

Mounting type	Ceiling
Maximum weight capacity	154.3 lbs (70 kg)
Product color	Black
Swivel angle	45°
Angle of rotation	5°
Tilt angle range	-10 - 20°
Width	31.1" (790.4 mm)
Height	6.42" (163 mm)
Depth	31.1" (790.4 mm)
Quantity per master (outer) case	1 pc(s)
Master (outer) case net weight	25.4 lbs (11.5 kg)
Harmonized System (HS) code	83024200
