Improve your computer experience with the renowned GigabyTeaorus, Aero and MotherboardsGIGABYTE. Characterized by innovative designs and advanced features, these cards offer exceptional performance and reliability. Whether you are a player, a creator of content or a professional, our series satisfy your needs, guaranteeing quality without compromise and cutting-edge technology.

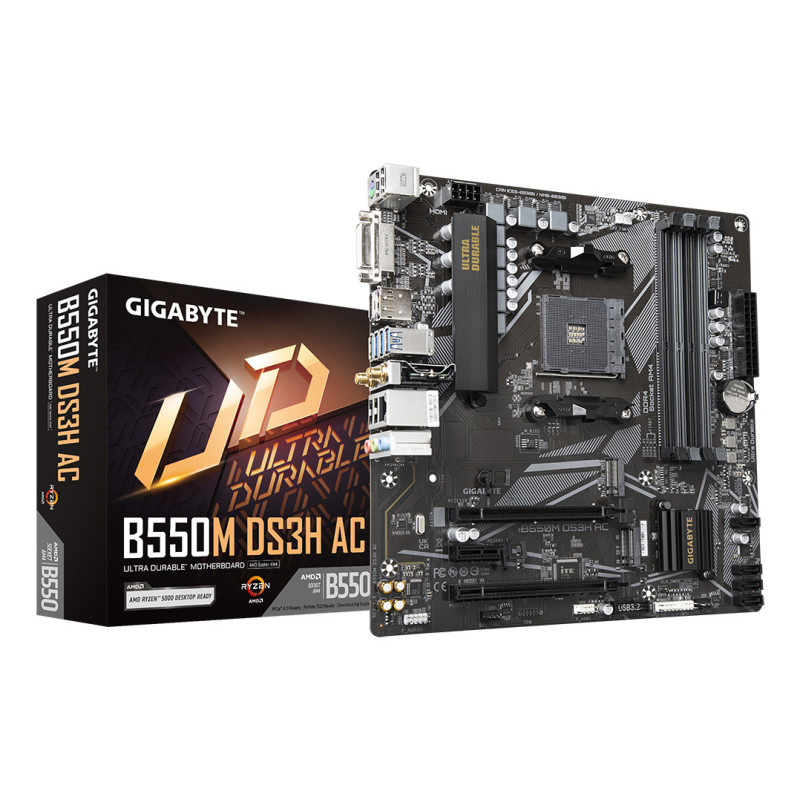

GIGABYTEB550M DS3H AC Motherboard - CPUAMDRyzen 5000, 5 + 3 phase VRM, up to 4733 MHz DDR4, 1xpiece 4.0 + 1xpiece 3.0 m.2, Wi-Fi 5, LAN 1GBE, USB 3.2 GEN 1. Processor manufacturer:AMD, Processor socket: Socket AM4, compatible processors:AMDRyzen 3000 series,AMDRyzen 4000 series,AMDRyzen 5000 series. Supported memory types: DDR4-SDRAM, maximum supported RAM: 128 GB, Type of memory slot: DIMM. Supported storage unit interfaces: M.2, SATA III, supported storage unit types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet Interface Type: Gigabit Ethernet, LAN Controller: Realtek RTL8111H, Wi-Fi Standard: Wi-Fi 5 (802.11acMiSorry, but you have not provided any text to translate.

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processors	AMDRyzen 3000 series,AMDRyzen 4000 series,AMDRyzen 5000 series
Processors supported by the socket	Socket AM4
Supported memory types	Ddr4-SDRAM
Number of memory slots	4
Supported maximum RAM	128 GB
Type of memory slot	DIMM
Memory channels	Dual-channel
Compatibility etc.	Etc and not-etc.
Supported memory speed	4733.4600,4400,426,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,240,2133 MHz
Supported memory clock speed (maximum)	4733 MHz
Buffer	Yup
Maximum internal storage for slots	32 GB
Supported storage unit interfaces	M.2, SATA III
Types of supported storage units	HDD & SSD
Number of supported hard drives	4
Number of supported storage devices	6
RAID support	Yup
RAID levels	0, 1, 10
Parallel process technology	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yup
DirectX version	12.0
USB 2.0 connectors	1
USB 3.2 Jan 1 connectors (3.1 Jan 1)	1
USB 3.2 Jan 2 connectors (3.1 Jan 2)	0
Number of SATA III connectors	4
Audio connector	Yup
Front audio panel connector	Yup
ATX connector (24-pin)	Yup
CPU fan connector	Yup
Number of CPU fan connectors	1
Number of fan connectors frame	2
EPS power connector (8-pin)	Yup
Number of EPS power connectors (8 PIN)	1
TPM connector	Yup
Serial port headers	1
Connector with 12V power	Yup
Number of connectors for the water pump	2
RGB LED connector	Yup
Number of Pin Header for RGB LED	5
USB 2.0 port quantities	4
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type A	4
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type C	0
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type A	0
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type C	0
LAN ethernet ports quantities (RJ-45)	1
VGA ports quantities (D-sub)	0
HDMI ports quantities	1
DVI-D ports quantities	1
PS / 2 ports quantities	1
HDMI version	2.1
Headphone outputs	1
Line entry	Yup
Microphone, entrance plug	Yup
WiFi-AP antenna plug	2
WiFi	Yup
Ethernet LAN connection	Yup
Type of Ethernet interface	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Standard Wi-Fi	Wi-Fi 5)802.11acMiSorry, but you have not provided any text to translate.
Standard Wi-Fi	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)802.11acMiSorry, but you have not provided any text to translate.
WLAN control device model	Realtek RTL8821CE
Bluetooth	Yup
Bluetooth version	4.2
Component for	PC
Motherboard shape factor	Micro ATX
Chipset family for motherboard	AMD
Motherboard chipset	AMDB550
Audio system	7.1 channels
Audio chip	Realtek ALC897
Product color	Brown
PC health status monitoring	Fan, temperature, voltage
Type of cooling	Passive
Type of power	ATX
Supported Windows operating system	Windows 10 x64, Windows 11 x64
PCI Express X1 slot (Gen 3.x)	1
PCI Express X16 Slot (GEN 3.x)	1
PCI Express X16 Slot (Gen 4.x)	1
M.2 slot number (m)	2
Maximum size of the first key connector M.2	22110
Maximum generation PCI Express of the first M.2	4.0
Maximum size of the second connector Key M.2	2280
Maximum generation PCI Express of the second M.2	3.0
Type BIOS	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
CMOS reset jumper	Yup
Desktop management interface version (DMI)	2.7
Version of the BIOS management system (SMBIOS)	2.7
Country of origin	China
Quantity of cardboard to be sent	1 piece
Battery weight	3 g
Lithium weight for drums	0.07 g
Number of battery cells	1
Battery technology	Lithium-manganese dioxide (Limno2)
Type of battery	Cr2032
Packing width	270 mm
Packaging depth	268 mm
Packaging height	68 mm
Packing weight	1.09 kg
Width	244 mm
Depth	244 mm
Height	35 mm
Batteries included	Yup
Antenna included	Yup
Screws included	Yup
Software provided	Norton® Internet Security LAN bandwidth management software
Msata doors quantities	0
Warranty duration	3 year (s)
