Improve your computer experience with the renowned series of motherboards of GigabyTeaorus, Aero andGIGABYTE. With innovative design and advanced features, these cards offer exceptional performance and reliability. Whether you are a player, a creator of content or a professional, our series adapt to your needs, guaranteeing quality and cutting-edge technology.

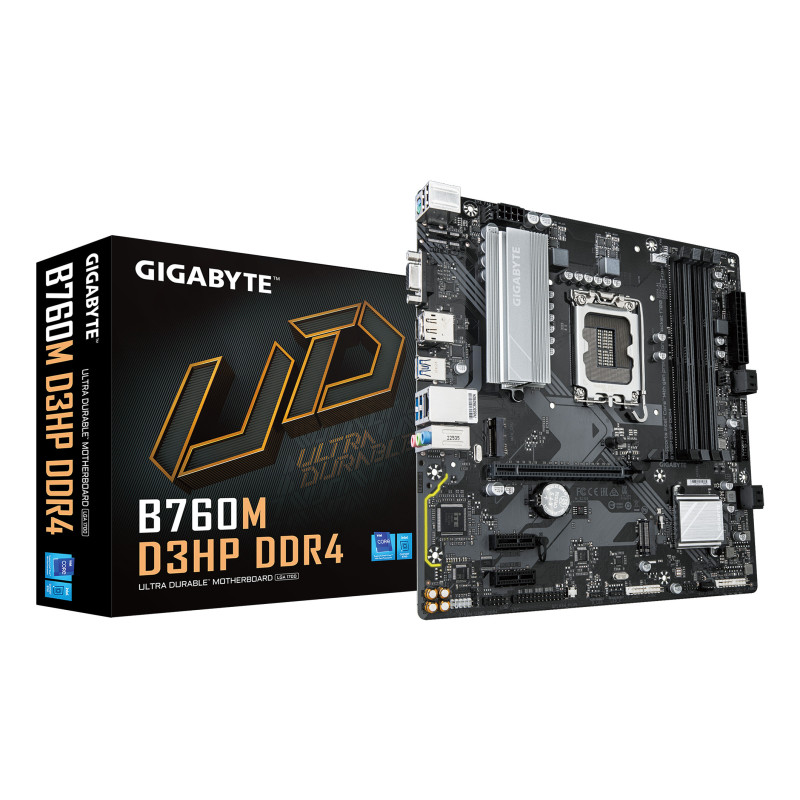

GIGABYTEB760M D3HP DDR4 Motherboard - Supports CPUIntelCore of 14th generation, digital VRM 4 + 1 + 1 phases, up to 5333MHz DDR4 (OC), 2xpCie 4.0 m.2, GBE LAN, USB 3.2 Gen1. Processor manufacturer:Intel, Processor socket: LGA 1700, compatible processors:Intel® Celeron®,Intel® Core ™ i3,Intel® Core ™ i5,Intel® Core ™ i7,Intel® Core ™ i9, .... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 128 GB, Type of memory slot: DIMM. Supported storage unit interfaces: M.2, SATA III, supported storage unit types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector: USB type A

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processors	Intel® Celeron®,Intel® Core ™ i3,Intel® Core ™ i5,Intel® Core ™ i7,Intel® Core ™ i9,Intel® Pentium® Gold
Processors supported by the socket	LGA 1700
Maximum internal memory supported by the processor	128 GB
Supported memory types	Ddr4-SDRAM
Number of memory slots	4
Supported maximum RAM	128 GB
Type of memory slot	DIMM
Memory channels	Dual-channel
Compatibility etc.	Etc and not-etc.
Supported memory speed	€ 2133,240,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800, 3866.4000,4133,42,66,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory clock speed (maximum)	5333 MHz
Supported capacity of the memory module	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Buffer	Yup
Supported storage unit interfaces	M.2, SATA III
Types of supported storage units	HDD & SSD
Number of supported hard drives	4
Number of supported storage devices	6
RAID support	Yup
RAID levels	0, 1, 5, 10
Parallel process technology	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yup
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Jan 1 connectors (3.1 Jan 1)	1
USB 3.2 Jan 2 connectors (3.1 Jan 2)	0
Number of SATA III connectors	4
Total number of SATA connectors	4
Number of Parallel ATA connectors	1
S / PDIF output connector	Yup
Audio connector	Yup
Front audio panel connector	Yup
Front panel connector	Yup
ATX connector (24-pin)	Yup
Fan power supply	Yup
CPU fan connector	Yup
Number of fan connectors frame	3
EPS power connector (8-pin)	Yup
TPM connector	Yup
Parallel connector	Yup
Serial port headers	1
Connector with 12V power	Yup
RGB LED connector	Yup
USB 2.0 port quantities	2
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type A	3
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type C	0
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type A	0
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type C	0
LAN ethernet ports quantities (RJ-45)	1
VGA ports quantities (D-sub)	1
HDMI ports quantities	1
DVI-D ports quantities	0
PS / 2 ports quantities	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone outputs	1
Line entry	Yup
Microphone, entrance plug	Yup
Optical digital audio output	3
USB connector	USB Type A
WiFi	No
Ethernet LAN connection	Yup
Type of Ethernet interface	Gigabit Ethernet
Component for	PC
Motherboard shape factor	Micro ATX
Chipset family for motherboard	Intel
Motherboard chipset	IntelB760 Express
Audio system	7.1 channels
Product color	Brown
PC health status monitoring	Fan, temperature, voltage, water cooling
Type of power	ATX
Supported Windows operating system	Windows 10, Windows 11
X1 PCI Express slot	1
PCI Express X1 slot (Gen 3.x)	1
PCI Express X4 slot	1
PCI Express X16 slot	1
PCI Express X16 Slot (GEN 3.x)	1
PCI Express X16 Slot (Gen 4.x)	1
M.2 slot number (m)	2
Type BIOS	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
CMOS reset jumper	Yup
Desktop management interface version (DMI)	2.7
Version of the BIOS management system (SMBIOS)	2.7
Country of origin	China
Quantity of cardboard to be sent	1 piece
Battery weight	3 g
Lithium weight for drums	0.07 g
Number of battery cells	1
Battery technology	Lithium-manganese dioxide (Limno2)
Type of battery	Cr2032
Packing width	265 mm
Packaging depth	265 mm
Packaging height	54 mm
Packing weight	990 g
Width	244 mm
Depth	244 mm
Height	35 mm
Batteries included	Yup
Software provided	NortonInternet security
Warranty duration	3 year (s)
