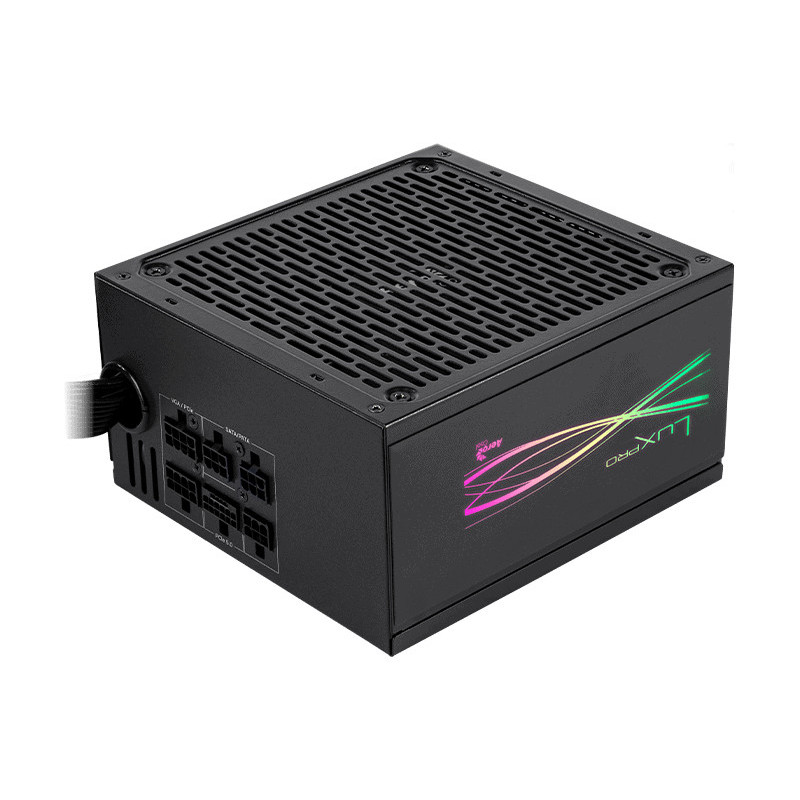

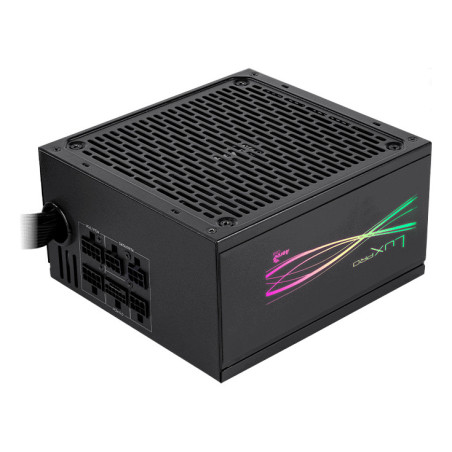

Introducing our LUX PRO RGB PSU series – spanning from 550M to 1000M models. LUX PRO RGB is enhanced with a 105°C Japanese primary capacitor and a 14cm FDB fan, boosting airflow and lifespan for superior thermal reliability. Additionally, you can illuminate your system with 13 unique lighting effects, controllable via an LED switch. Its smart semi-modular design facilitates easy installation and streamlined cable management. The 550M to 850M models hold 80Plus 230V EU Bronze certification, while the 1000M model achieves 80Plus Gold efficiency. Both 850M and 1000M models comply with ATX3.0 and PCIe 5.0 standards for modern RTX 40 VGA cards. Elevate your computing experience with LUX PRO RGB – the definition of power and luxury.

HIGH EFFICIENCY PERFORMANCE
550W | 650W | 750W | 850W
Up to 88%+ efficiency and 80plus 230V EU Bronze Certified

FDB
Fluid Dynamic Bearing (FDB) offers superior durability and reduced noise through its smooth operation based on fluid dynamics, enabling overall performance and extending its lifespan.

JAPANESE BRAND PRIMARY CAPACITOR
Built by more relaible Toshin Kyogo Japanese brand 105°C primary capacitor.

OPTIMIZED AIRFLOW
14cm silent FDB fan with optimized thermal fan speed control. Fan runs at startup speed (less than 700RPM) before reaching 40% load at 25°C ambient temperatures.

ARGB COMPATIBLE
Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

- Make sure PSU is connected to motherboard’s ARGB header.
- Hold button on PSU for 3 seconds.
- Control will switch from PSU to motherboard.

STYLISH RGB FLOW
Enjoy a vivid stream of colors: LUX PRO RGB comes equipped with RGB LED Lighting and 13 unique lighting effects that can be controlled via LED control button.

Aerocool LUXPRORGB750M. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 21.7" (55 cm), SATA power cable length: 550,700,850 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Compliance certificates: CB, CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA

Total power	750 W
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	708 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	59 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	88%
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	21.7" (55 cm)
Number of SATA power connectors	6
Number of PATA power connectors	3
SATA power cable length	550,700,850 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power cable length	27.6" (70 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	23.6" (60 cm)
PCI Express connector	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.52
Bearing technology	FDB
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
Illumination	Yes
On/off switch	Yes
Compliance certificates	CB, CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA
