High-efficiency energy

The BZ series has an 80PLUS BRONZE certificate and top quality components ready to provide stable and high quality power in high performance equipment.

It incorporates a 140 mm ultra-quiet fan to provide greater air flow inside.

80Plus Bronze Certified

BZ power supplies have an 80PLUS BRONZE certificate, which guarantees an efficiency of more than 85% in any load and achieves lower consumption and greater durability of all the components.

Heat emissions will be reduced with more efficient working, allowing the fan to work at a lower speed, so the noise produced by the power supply will be virtually imperceptible.

It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors

The BZ series is made from high-performance capacitors to provide maximum reliability and durability in very demanding conditions.

The BZ range offers a durability greater than 80.000 hours of operation.

Compatible with the range of Intel® Haswell™ processors which set new standards in terms of energy efficiency by reducing CPU power consumption to only 0.05A, requiring the PSU to maintain a stable voltage at low power.

Ultra-silent 140mm fan

The BZ series has an ultra-quiet 140 mm fan that will allow more air flow inside.

The 140 mm fan provides more air flow running at lower revolutions, so in addition to making the noise of the fan virtually imperceptible, greater efficiency and durability will be achieved with all the components.

Gaming design

With a new exterior design and fully lacquered in black, the BZ power supplies have a more robust finish.

Its 900mm long shielded cables will enable orderly installation in any chassis and provide excellent safety and durability thanks to their shielded covering.

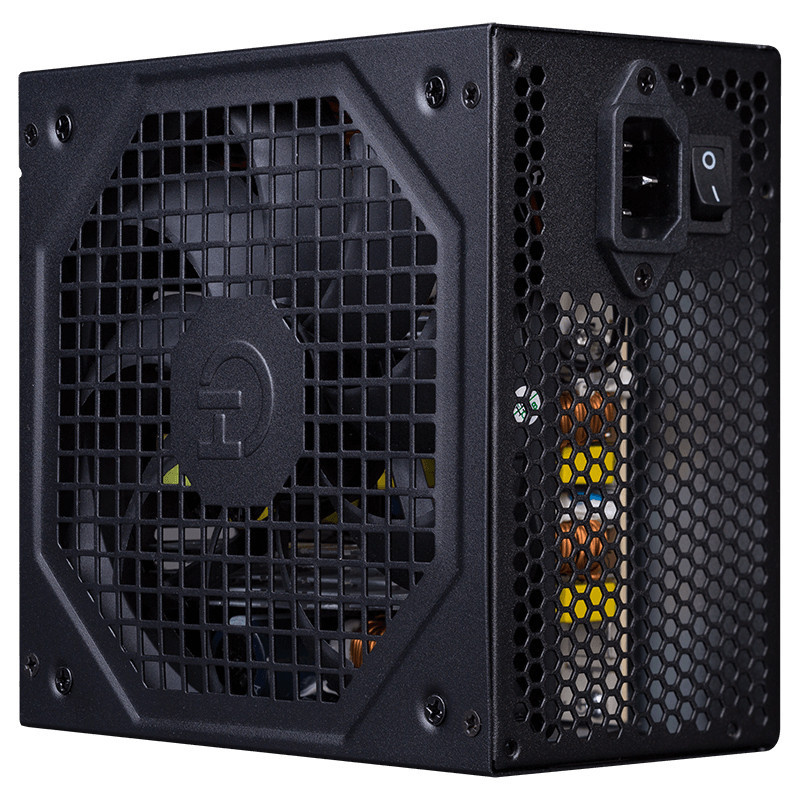

Hiditec BZ-650 80Plus Bronze. Total power: 650 W, AC input voltage: 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 19.7" (50 cm), SATA power cable length: 600,750,900 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Compliance certificates: RoHS, Certification: CE

Total power	650 W
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	20 A
Max output current (+12V)	54 A
Max output current (+5V)	20 A
Max output current (-12V)	6 A
Max output current (+5Vsb)	15 A
Efficiency	85%
Power protection features	Over voltage, Overload, Under power
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	19.7" (50 cm)
Number of SATA power connectors	6
SATA power cable length	600,750,900 mm
Peripheral (Molex) power cable length	600,750,900 mm
PCI Express power connectors (6+2 pin)	2
CPU power cable length	22.4" (57 cm)
Floppy disk drive connector	Yes
Floppy disk drive cable length	39.4" (100 cm)
CPU power connectors (8-pin)	1
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.4
Silent mode	Yes
Mean time between failures (MTBF)	80000 h
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
Compliance certificates	RoHS
Certification	CE
Width	5.91" (150 mm)
Depth	6.3" (160 mm)
Height	3.35" (85 mm)
Weight	3.86 lbs (1.75 kg)
Package type	Box
