The RL series has an 80PLUS BRONZE certificate and top quality components ready to provide stable and high quality power in high performance equipment. It incorporates a 120 mm ultra-quiet fan to provide greater air flow inside.

High-efficiency energy

The RL series has an 80PLUS BRONZE certificate and top quality components ready to provide stable and high quality power in high performance equipment.
It incorporates a 120 mm quiet fan to provide greater air flow inside.

80Plus Bronze Certified

RL power supplies have an 80PLUS BRONZE certificate, which guarantees an efficiency of more than 85% as well as a lower consumption and greater durability of all the components.
Heat emissions will be reduced with more efficient working, allowing the fan to work at a lower speed, so the noise produced by the power supply will be virtually imperceptible.
It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors

The RL series is made from high-performance capacitors to provide maximum reliability and durability in very demanding conditions.
The RL range offers a durability greater than 100.000 hours of operation.
Compatible with the range of Intel® Haswell™ processors which set new standards in terms of energy efficiency by reducing CPU power consumption to only 0.05A, requiring the PSU to maintain a stable voltage at low power.

Silent 120mm fan

The RL series has an quiet 120 mm fan that will allow more air flow inside.
The 120 mm fan provides more air flow running at lower revolutions, so in addition to making the noise of the fan virtually imperceptible, greater efficiency and durability will be achieved with all the components.

Extra long flat cables

Extra-long flat cables facilitate adaptation when installing in any equipment, thereby assuring more orderly installation while taking up less space and provide excellent safety and durability.
With a new exterior design and fully lacquered in black, the RL power supplies have a more robust finish.

5 Years Extended Warranty
The RL series offers reliability and durability backed by a 5-year warranty, supported by HIDITEC’s technical support team.

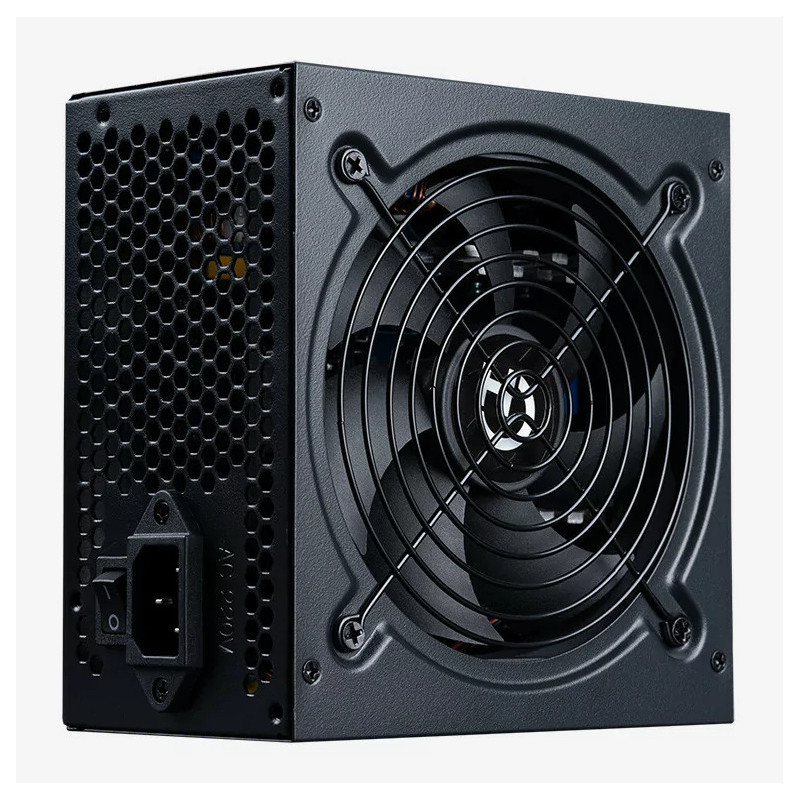

Hiditec RL550. Total power: 550 W, AC input voltage: 230 V, Max output current (+3.3V): 20 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 3.35" (85 mm), Height: 5.51" (140 mm)

Total power	550 W
AC input voltage	230 V
Max output current (+3.3V)	20 A
Max output current (+12V)	45 A
Max output current (+5V)	20 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Number of SATA power connectors	8
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan location	Top
Illumination	No
On/off switch	Yes
Width	5.91" (150 mm)
Depth	3.35" (85 mm)
Height	5.51" (140 mm)
Weight	3.86 lbs (1.75 kg)
Package type	Box
