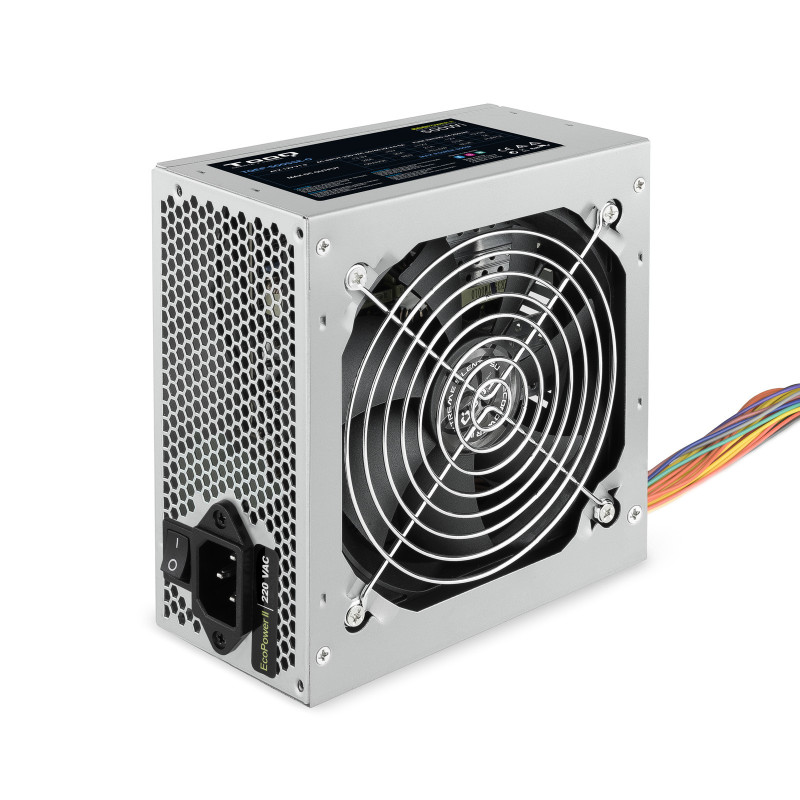

Ecopower II is the next generation of Ecopower TOOQ power supply. The new Power Supplies version includes high quality Active PFC (Active PFC, PF> 0.99, not all models have Altive PFC), which guarantees at least 78% efficiency. With Active PFC technology, the power supply produces much less heat than another with Passive PFC, which can prolong the power supply life. In addition, the Ecopower II series has a super quiet high quality fan, very stable dual +12V rail and high-tech electronic protection system.

TooQ Fonte Ecopower II. Total power: 500 W, AC input frequency: 50 - 60 Hz, Power Good signal delay range: 100 - 500 ms. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 13.8" (35 cm), SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Supported motherboard form factors: ATX. Product color: Silver, Fan diameter: 4.72" (12 cm), Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: CE

Total power	500 W
AC input frequency	50 - 60 Hz
Power Good signal delay range	100 - 500 ms
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Motherboard power cable length	13.8" (35 cm)
Number of SATA power connectors	4
SATA power cable length	500 mm
Peripheral (Molex) power cable length	500 mm
CPU power connector (4+4 pin)	Yes
CPU power cable length	13.8" (35 cm)
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
Supported motherboard form factors	ATX
ATX version	1.3
Noise level	15 dB
Mean time between failures (MTBF)	10000 h
Product color	Silver
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Compliance certificates	RoHS
Certification	CE
Width	3.39" (86 mm)
Depth	5.91" (150 mm)
Height	5.51" (140 mm)
Manual	Yes
Package width	3.94" (100 mm)
Package depth	9.45" (240 mm)
Package height	6.3" (160 mm)
Package weight	2.93 lbs (1.33 kg)
Number of cartons per pallet	420 pc(s)
Master (outer) case volume	43943.63 cm³
Quantity per master (outer) case	10 pc(s)
Package volume	4394.36 cm³
