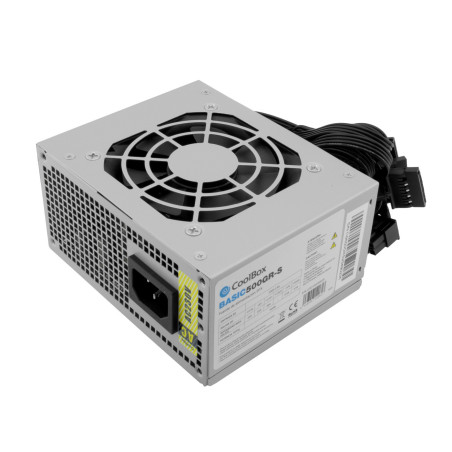

CoolBox BASIC500GR-S. Total power: 500 W, AC input voltage: 230 V, Input current: 2.5 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, Mean time between failures (MTBF): 100000 h. Product color: White, Cooling type: Active, Fan diameter: 3.15" (8 cm). Compliance certificates: RoHS, Certification: CE, Eco-raee

Total power	500 W
AC input voltage	230 V
Input current	2.5 A
Max output current (+3.3V)	22 A
Max output current (+12V1)	26 A
Max output current (+5V)	22 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over voltage, Short circuit
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA power connectors	3
CPU P4 connector (4-pin)	1
ATX power connector (20+4 pin)	Yes
Floppy disk drive connector	Yes
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	SFX
Mean time between failures (MTBF)	100000 h
Compatible products	EPS1U (2.1), Intel TFX12V v2.3
Product color	White
Cooling type	Active
Fan diameter	3.15" (8 cm)
Number of fans	1 fan(s)
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 85%
Compliance certificates	RoHS
Certification	CE, Eco-raee
Width	4.92" (125 mm)
Depth	3.94" (100 mm)
Height	2.44" (62 mm)
Weight	20.9 oz (593 g)
Package type	Box
