he P7-650W Platinum Power Supply Unit was designed by Aerocool in collaboration with TechPowerUp through iterative prototyping and testing.
The unit’s superior efficiency, noise reduction, and durability are an attestation to these efforts. High engineering standards by Aerocool and TechPowerUp guarantee your satisfaction.

RGB LIGHTING
Access 16.8 million colors and three LED modes with P7-S1 (Project7-Software1), available with our P7-Hub (P7-H1). RGB functions can also be controlled through motherboards with 4 Pin RGB configuration.

RGB SOFTWARE
16.8 million colors with three LED lighting modes including solid color, breathing, and pulsating. Set your color by entering RGB color code (HTML code).
Learn more about P7-S1 (Project7-Software1)

MONITOR FAN RPM
Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

EFFICIENCY
80 PLUS Platinum certified for highest efficiency: Under typical load, efficiency is at 92% when 115VAC and efficiency is around 94% when 230VAC.
Certified by Cybenetics with the ETA-A badge.This badge is granted to units with efficiency rates of between 88% to 91%.

HIGH-QUALITY JAPANESE CAPACITORS
Only the highest quality Japanese capacitors were used in the manufacturing of P7-650W Platinum. High-quality Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.The unit is designed to work efficiently even at 50°C ambient temperature.

SOUNDLESS OPERATION
The PSU fan only spins when your PC is doing some grunt work. The fan kicks in at 60% load ensuring most of the time you won’t even hear it. For the techies, the fan spins at less than 500 RPM before 80% load. Basically, you’re going to experience a soundless operation.

Certified by Cybenetics with the badge LAMBDA-A++.
This badge is granted to units with average noise measurements of under 20 dB.

ETCHED CIRCUIT DESIGN
P7-650W Platinum
Cable free connections between components, daughter boards and main PCB deliver a cleaner and solid ‘Etched Circuit Design’. This improves reliability, airflow and overall lag free communication leading to better cooling performance and a much more quieter operation.

Traditional PCB
The many protruding cables of legacy circuit boards made them prone to failure either due to overheating or human error during assembling. Etched Circuit Design solved all of these issues.

MODULAR CABLE OUTLETS
The fully modular and soft black flat cables make cable management convenient and deliver an easier installation experience.

14CM FAN WITH FDB (Fluid Dynamic Bearing)
The 14cm fan provides excellent airflow and the additional FDB dust-proof design ensures a smooth operation.

PEACE OF MIND
Aerocool has invested heavily in the development of P7-650W Platinum. We guarantee that the unit was built using only the highest quality components. We back this promise with a 7-year warranty policy to ensure your peace of mind.

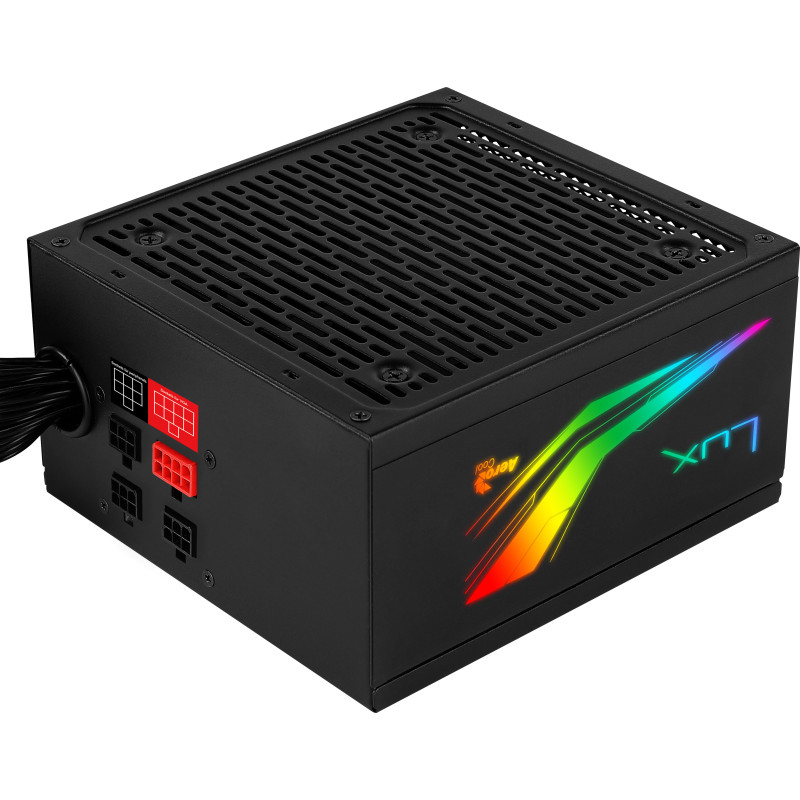

Aerocool LUX RGB 650M. Total power: 650 W, AC input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 19.7" (50 cm), SATA power cable length: 500,550 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Cables included: AC

Total power	650 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 A
Combined power (+3.3V)	120 W
Combined power (+12V)	600 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	50 A
Max output current (+12V4)	0.3 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	2.5 A
Efficiency	88%
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	19.7" (50 cm)
Number of SATA power connectors	5
Number of PATA power connectors	3
SATA power cable length	500,550 mm
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
CPU power cable length	21.7" (55 cm)
ATX power connector (20+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Semi-Modular
Purpose	PC
80 PLUS certification	80 PLUS Bronze
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan speed	0 - 800 RPM
Illumination	Yes
On/off switch	Yes
Cables included	AC
Manual	Yes
Package width	9.06" (230 mm)
Package depth	7.68" (195 mm)
Package height	3.74" (95 mm)
Package type	Box
Master (outer) case width	9.84" (250 mm)
Master (outer) case length	19.5" (495 mm)
Master (outer) case height	8.46" (215 mm)
Quantity per master (outer) case	5 pc(s)
Frequency tolerance	94%
Cable ties included	Yes
Illumination color	Blue, Green, Red
