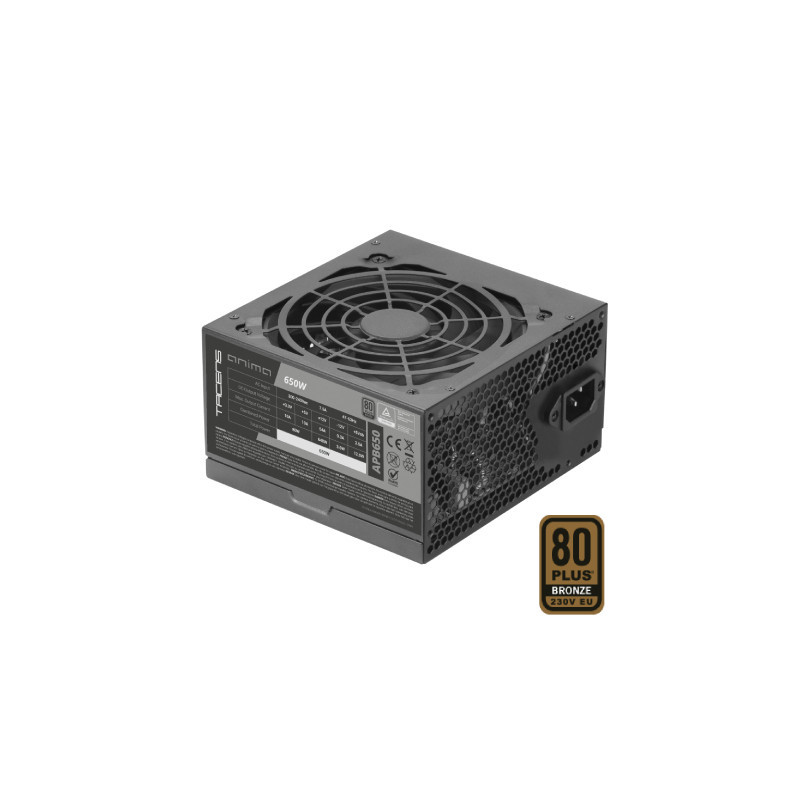

The APB650 is designed to deliver up to 650W of power safely and efficiently, maximising your PC's performance. The 80 Plus Bronze certification guarantees long-lasting operation and is tested by recognised European laboratories.

Tacens Anima APB650. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.71" (145 mm), Height: 3.35" (85 mm)

Total power	650 W
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	7.5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	80 W
Combined power (+12V)	648 W
Combined power (+5V)	80 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	10 A
Max output current (+12V)	54 A
Max output current (+5V)	10 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	85%
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	24-pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	Yes
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Noise level	14 dB
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan location	Top
Illumination	No
On/off switch	Yes
Width	5.91" (150 mm)
Depth	5.71" (145 mm)
Height	3.35" (85 mm)
Weight	3 lbs (1.36 kg)
Package width	4.96" (126 mm)
Package depth	9.33" (237 mm)
Package height	7.99" (203 mm)
Package weight	3.33 lbs (1.51 kg)
Package type	Box
