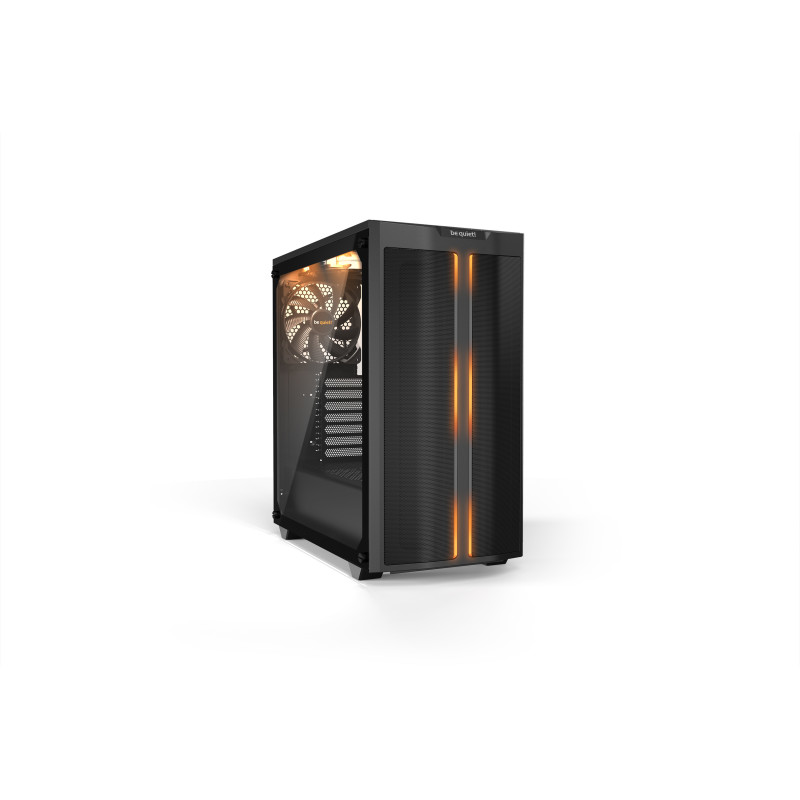

The be quiet! Pure Base 500DX Black is optimized for high cooling performance and designed for those who seek high airflow.

HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance
For all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX Black with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.

3 PREINSTALLED PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.

IMPRESSIVE ILLUMINATION
ARGB light at the front and inside the case
ARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.

SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.

SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500DX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.

EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500DX Black offers various options for installing up to 5 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.

FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.

TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.

be quiet! Pure Base 500DX. Form factor: Midi Tower, Type: PC, Product color: Black. Power supply location: Bottom, Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Front fans supported description: 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm. Supported HDD sizes: 2.5,3.5". Width: 9.13" (232 mm), Depth: 17.7" (450 mm), Height: 17.4" (443 mm)

Form factor	Midi Tower
Type	PC
Product color	Black
Supported motherboard form factors	ATX, micro ATX, Mini-ATX
Number of 3.5" bays	2
Material	Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass
Number of 2.5" bays	5
Number of expansion slots	7
Side window	Yes
Illumination	Yes
Illumination color	Blue, Green, Red
Illumination location	Front, Internal
Tempered glass panel(s)	Yes
Anti-dust filter	Yes
On/off button	Yes
Maximum CPU cooler height	7.48" (19 cm)
Maximum graphics card length	14.5" (36.9 cm)
Maximum PSU length	10.2" (25.8 cm)
Certification	CE, RoHS
Power supply included	No
Power supply location	Bottom
Supported power supply form factors	ATX, PS2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio input	Yes
Audio output	Yes
Front fans installed	1x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Front fans supported description	140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Rear fans supported description	140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm
Top fans installed	1x 140 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Top fans supported description	140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm
Front radiator sizes supported	120,140,240,280,360 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,140 mm
Supported HDD sizes	2.5,3.5"
Width	9.13" (232 mm)
Depth	17.7" (450 mm)
Height	17.4" (443 mm)
Weight	17.2 lbs (7.8 kg)
Package width	11.2" (285 mm)
Package depth	20.1" (510 mm)
Package height	19.4" (494 mm)
Package weight	18.7 lbs (8.49 kg)
Harmonized System (HS) code	84733080
