Better Performance WiFi 6E
WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower
latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more.

Blazing Fast for
Latency Free Streaming

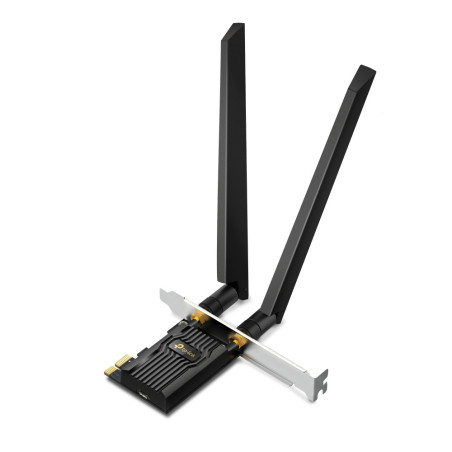

Archer TXE72E arms your PC with the newly opened 6 GHz band, unlocking your WiFi 6E router’s full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to WiFi 6E devices. This prevents drops in speed and interference from legacy devices.

Superior WiFi Reception
Archer TXE72E brings your PC’s WiFi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.

Immersive Game World with Lower Latency
Lower latency is key to seamless experiences in real-time applications like video conferencing and gaming. To achieve this, Archer TXE72E reduces lag by up to 75% with the Intel Wi-Fi 6E chipset.

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

The Latest Bluetooth 5.2
Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard. Archer TXE72E equips your PC with Bluetooth 5.2, which achieves faster speeds and broader coverage.

Your Security Guard
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Easy Setup
Simple software installation via disk with the intuitive Utility

Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases

Operating System
Supports Windows 10, 11 (64-bit)



TP-Link Archer TXE72E. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz). Antenna type: 2x2, Product color: Black

Connectivity technology	Wired
Host interface	PCI Express
Interface	WLAN / Bluetooth
Maximum data transfer rate	2402 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported	54,300,1732,2402 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth	Yes
Bluetooth version	5.3
Internal	Yes
Component for	PC
Product color	Black
Antenna	Yes
Antenna design	External
Antenna type	2x2
Transmitting power (CE)	5 GHz: 15, 2.4 GHz: 16
Transmitting power (FCC)	5 GHz: 20, 2.4 GHz: 20, 6 GHz: 12
Operating modes	Infrastructure mode
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64, Windows 11, Windows 11 Enterprise x64, Windows 11 x64
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	3.09" (78.5 mm)
Depth	0.827" (21 mm)
Height	4.72" (120 mm)
Package width	7.93" (201.5 mm)
Package depth	6" (152.5 mm)
Package height	1.63" (41.5 mm)
Package weight	8.47 oz (240 g)
Mounting brackets included	Yes
Resource CD	Yes
Bluetooth header cable	Yes
Quick installation guide	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance	Yes
