Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

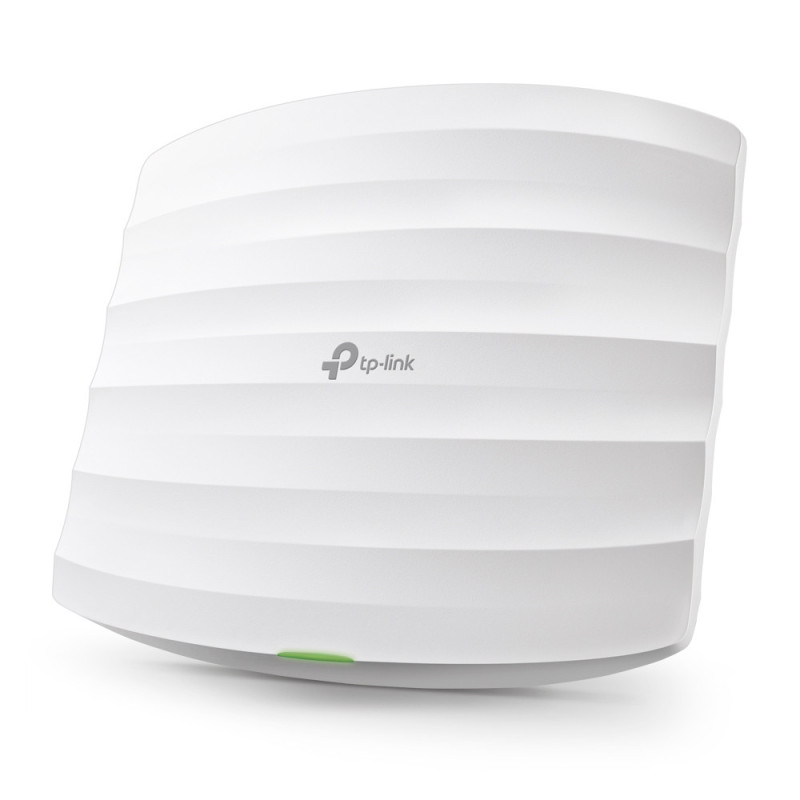

TP-Link Omada EAP245. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1750 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1750 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	SSID-based VLAN assignment
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	24 dBm
Transmitting power	27 dBmW
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Port-based Network Access Control (PNAC)	Yes
Access Control List (ACL)	Yes
Management protocols	HTTP/HTTPS
Web-based management	Yes
Syslog	Yes
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	12.7 W
Placement	Ceiling, Wall
Product color	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Reset button	Yes
LED indicators	Power
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Width	7.09" (180 mm)
Depth	7.09" (180 mm)
Height	1.87" (47.5 mm)
Package width	8.98" (228 mm)
Package depth	13.4" (340 mm)
Package height	2.56" (65 mm)
Package weight	2.6 lbs (1.18 kg)
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
