TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

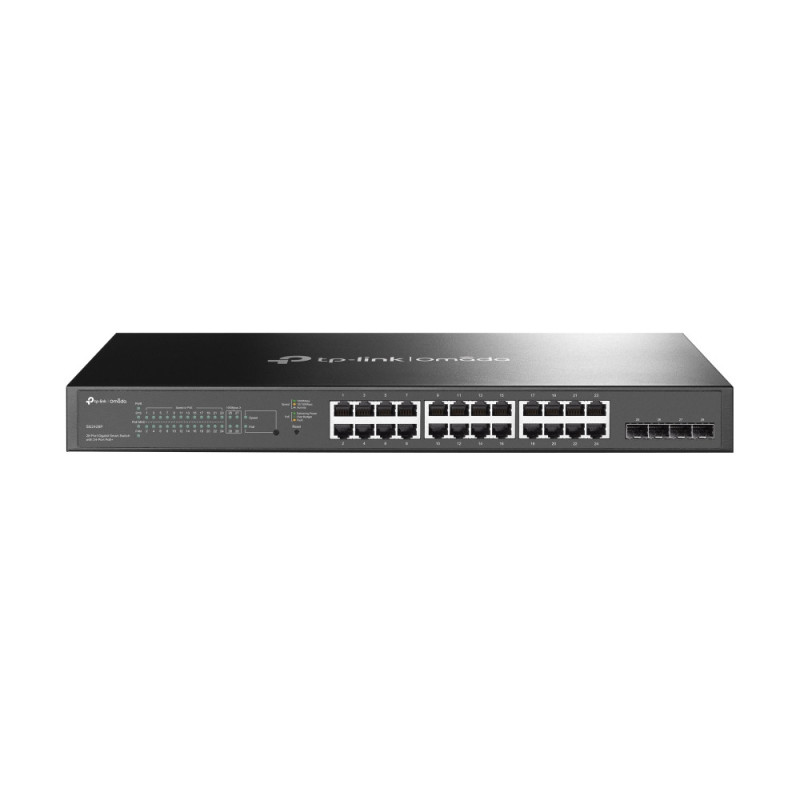

TP-Link Omada TL-SG2428P. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL support	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication type	RADIUS
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Multicast support	Yes
Management protocols	SNMPv1/v2c/v3, SNTP
Rack mounting	Yes
Form factor	1U
Product color	Black
Number of fans	2 fan(s)
Firmware upgradeable	Yes
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	301.1 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1052.94 BTU/h
Width	17.3" (440 mm)
Depth	8.66" (220 mm)
Height	1.73" (44 mm)
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Certification	CE, FCC, RoHS
