Easily Upgrade to Business WiFi 6 Network
AX1800 Ceiling Mount WiFi 6 Access Point

AX1800 WiFi 6 Speed

574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz†

Seamless Roaming

Uninterrupted streaming when moving between APs§

Ultra-Slim Design

Φ160 mm × 33.6 mm elegant design brings more agility

High-Efficiency WiFi 6

More connected devices can enjoy faster speeds


Omada Mesh Technology

More flexible and convenient wireless deployment

Gigabit Wired Performance

Boosts overall throughput with a Gigabit Ethernet port

Centralized Cloud Management

Manage the whole network locally or from the cloud

PoE+ Powered

Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations

Optimized WiFi Performance

With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance


Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.

Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speeds

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.

Easy to Mount with Refined Industrial Design

Boosted Network Security and Efficiency

Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Guest Network with SMS Login

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance

Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness

Increases average network throughput in heavily congested environments

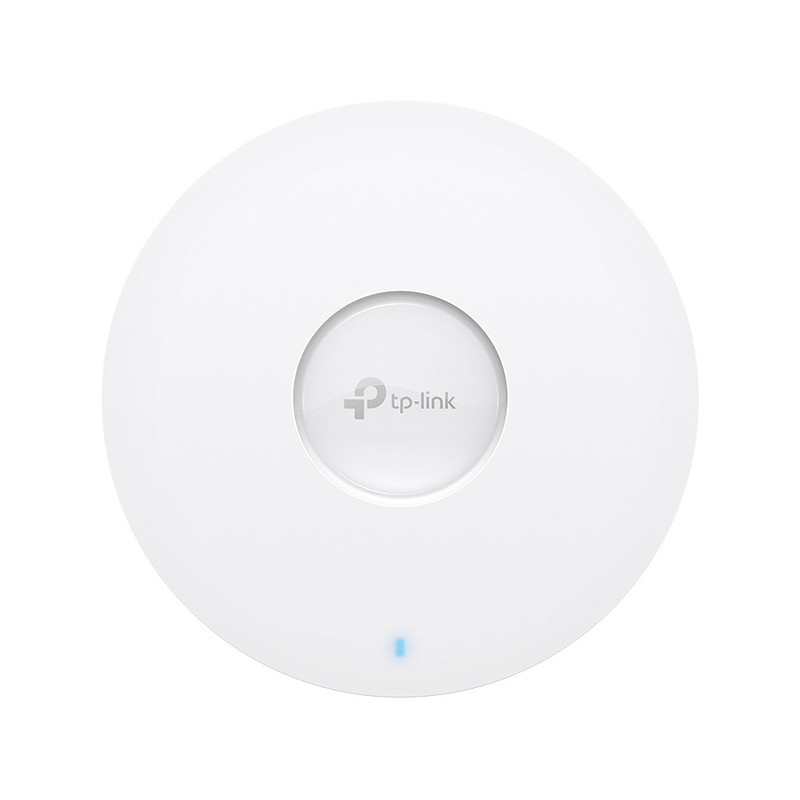

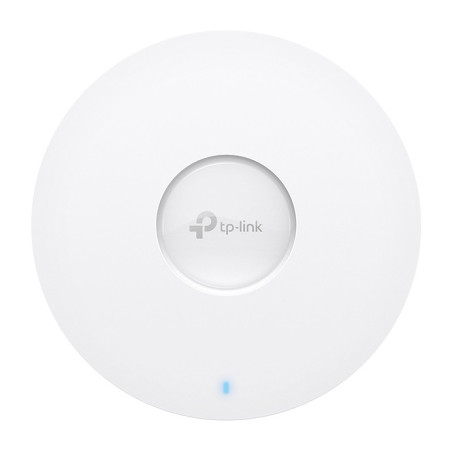

TP-Link Omada EAP613. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 10.6 W

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1775 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
BeamForming	Yes
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC)	<25 dBm (2.4 GHz); <25 dBm (5 GHz)
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Number of SSID supported	16
Web-based management	Yes
Management platform	Omada
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
DC voltage range	12 V
Input current	1 A
Power consumption (typical)	9.6 W
Power consumption (max)	10.6 W
Placement	Ceiling, Wall
Product color	White
Reset button	Yes
LED indicators	Yes
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Certification	CE, FCC, RoHS
Width	6.3" (160 mm)
Depth	6.3" (160 mm)
Height	1.32" (33.6 mm)
Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	0 - 40%
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
