AV1000 Speeds and 300 Meters Range

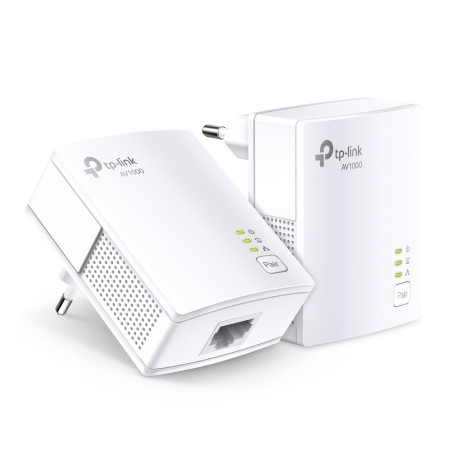

Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%

TP-Link TL-PA7017 KIT. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Power plug: Type F. Power consumption (typical): 2.3 W, Power consumption (standby): 0.5 W, AC input voltage: 220 V. Product color: White, Antenna type: Internal, LED indicators: LAN, PLC, Power. Width: 2.56" (65 mm), Depth: 1.12" (28.5 mm), Height: 2.05" (52 mm). Compliance certificates: RoHS

Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Wi-Fi	No
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power plug	Type F
Built-in power socket	No
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	11811" (300 m)
Plug and Play	Yes
Power consumption (typical)	2.3 W
Power consumption (standby)	0.5 W
AC input voltage	220 V
AC input frequency	50 Hz
Product color	White
Antenna type	Internal
LED indicators	LAN, PLC, Power
Certification	CE
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac compatibility	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	2.56" (65 mm)
Depth	1.12" (28.5 mm)
Height	2.05" (52 mm)
Compliance certificates	RoHS
Package width	7.48" (190 mm)
Package depth	5.35" (136 mm)
Package height	3.94" (100 mm)
Package weight	14.5 oz (410 g)
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85171800
