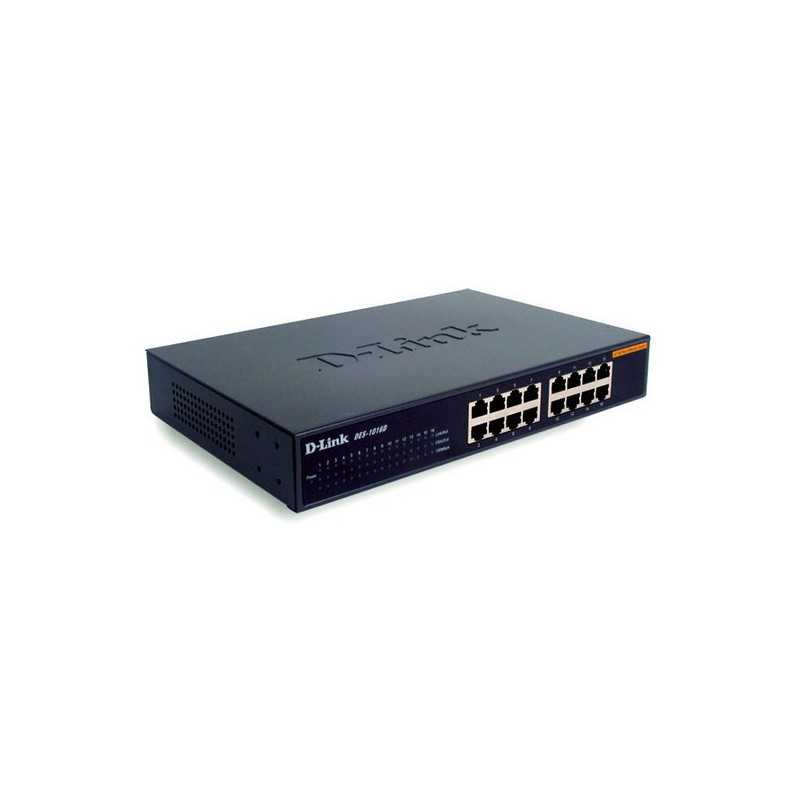

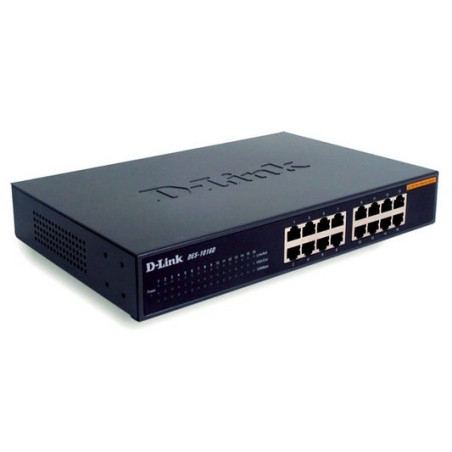

16-Port 10/100Mbps Switch for SOHO/Workgroup
10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.

Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.

Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.

Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in fullduplex, or hubs in half-duplex.

Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.

D-Link DES-1016D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	16
Full duplex	Yes
MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
LED indicators	Power
Internal memory	2 MB
Power over Ethernet (PoE)	No
Data transfer rate	100 Mbit/s
Dimensions (WxDxH)	12.8 x 9.09 x 1.75" (324 x 231 x 44.5 mm)
Connectivity technology	Wired
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Package width	11.1" (282 mm)
Package depth	14.8" (376 mm)
Package height	3.07" (78 mm)
Package weight	4.01 lbs (1.82 kg)
Shipping (inner) case height	12.2" (31.1 cm)
Shipping (inner) case width	15.4" (39.2 cm)
Shipping (inner) case length	16.5" (42 cm)
Shipping (inner) case net weight	20.1 lbs (9.11 kg)
Quantity per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	565.3 lbs (256.4 kg)
Number of cartons per pallet (air)	24 pc(s)
Quantity per pallet (air)	120 pc(s)
Pallet length	47.2" (120 cm)
Pallet width	43.3" (110 cm)
Pallet height (air)	54.3" (137.9 cm)
Pallet gross weight (sea)	829.2 lbs (376.1 kg)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per pallet (sea)	180 pc(s)
Pallet height (sea)	79.9" (2.03 m)
Shipping (inner) case weight	22 lbs (9.97 kg)
Harmonized System (HS) code	85176990
