What This Product Does

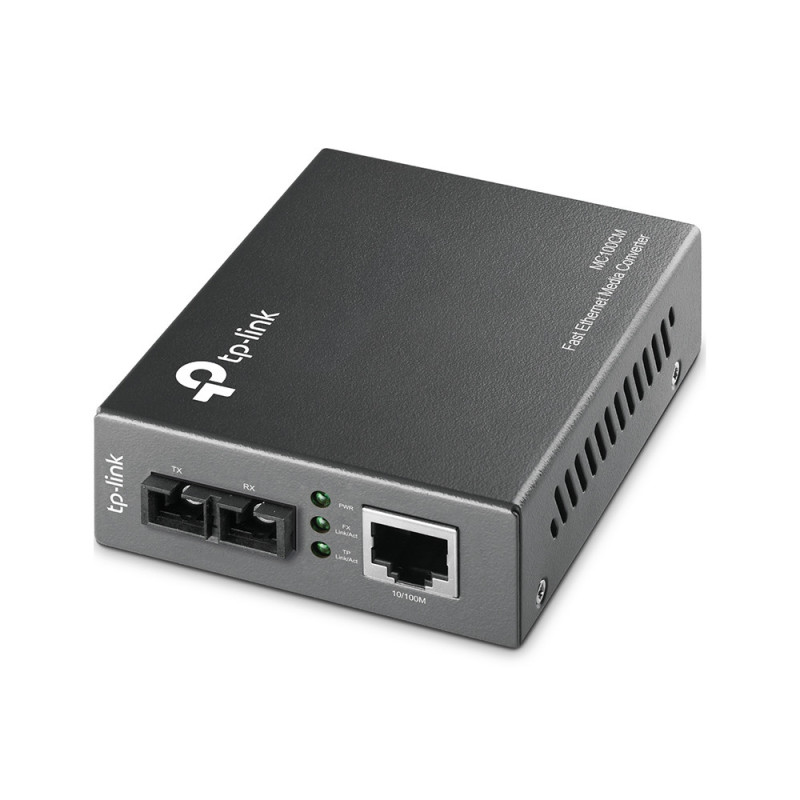

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.

TP-Link MC100CM. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 78740.2" (2000 m), Wavelength: 1310 nm. Product color: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.5 W

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Fiber ethernet cabling technology	100BASE-FX
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Maximum transfer distance	78740.2" (2000 m)
Wavelength	1310 nm
Internal	No
LED indicators	Yes
Product color	Black
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power consumption (max)	2.5 W
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Package width	6.5" (165 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	13.4 oz (380 g)
Certification	FCC, CE
