Increase Your Network Speed and Save Energy

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Durable Metal Casing

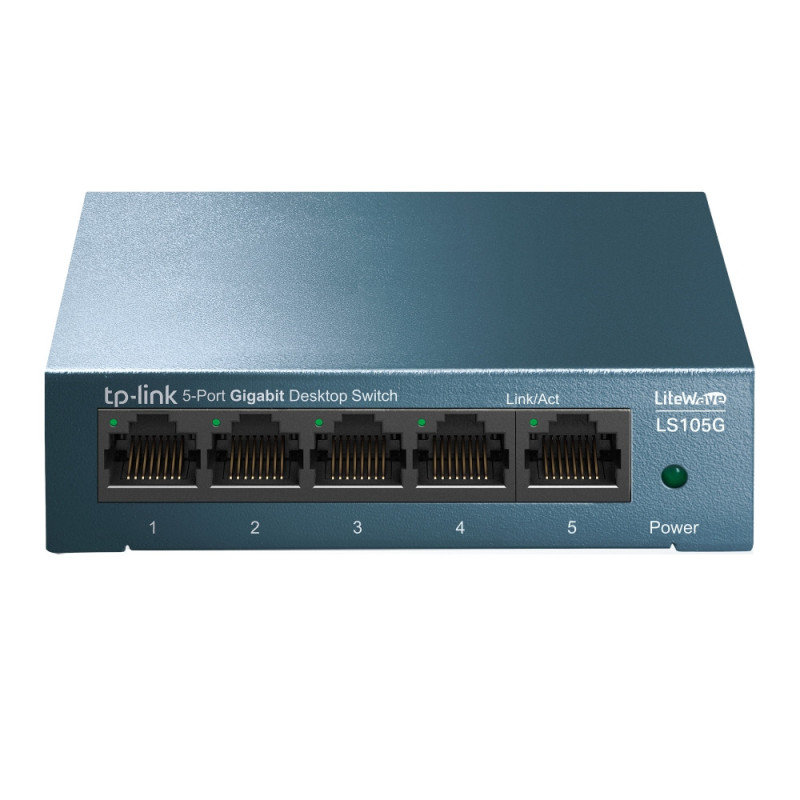

The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

TP-Link LS105G. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1 MB
Rack mounting	No
Product color	Blue
Housing material	Metal
LED indicators	Activity, LAN, Power
Wall mountable	Yes
Power source	DC
Power supply included	Yes
Input current	0.6 A
Input voltage	5 V
Power consumption (max)	2.776 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.466 BTU/h
Width	3.93" (99.8 mm)
Depth	3.86" (98 mm)
Height	0.984" (25 mm)
Quick start guide	Yes
Package width	4.92" (125 mm)
Package depth	5.04" (128 mm)
Package height	3.62" (92 mm)
Package weight	10.2 oz (290 g)
Certification	CE, FCC, RoHS
Harmonized System (HS) code	85176990
